Part Number: MC3363



MFG: MOTOROLA

Package Cooled: SOP

D/C: 1365



Urgent Purchase

MC3363 Maximum Ratings

Rating
Pin
Symbol
Value
Unit
Power Supply Voltage
8
VCC(max)
7.0
Vdc
Operating Supply Voltage Range
(Recommended)
8
VCC
2.0 to 6.0
Vdc
Input Voltage (VCC = 5.0 Vdc)
1,28
V128
1.0
Vrms
Mute Output Voltage
19
V19
0.7 to 8.0
Vpk
Junction Temperature
TJ
150
°C
Operating Ambient Temperature Range
TA
40 to + 85
°C
Storage Temperature Range
Tstg
65 to + 150
°C

MC3363 Features

• Wide Input Bandwidth 200 MHz Using Internal Local Oscillator
                                      450 MHz Using External Local Oscillator
• RF Amplifier Transistor
• Muting Operational Amplifier
• Complete Dual Conversion
• Low Voltage: VCC = 2.0 V to 6.0 Vdc
• Low Drain Current: ICC = 3.6 mA (Typical) at VCC = 3.0 V,Excluding RF Amplifier Transistor
• Excellent Sensitivity: Input 0.3 mV (Typical) for 12 dB SINAD Using Internal RF Amplifier Transistor
• Data Shaping Comparator
• Received Signal Strength Indicator (RSSI) with 60 dB Dynamic Range
• Low Number of External Parts Required
• Manufactured in Motorola4s MOSAIC) Process Technology

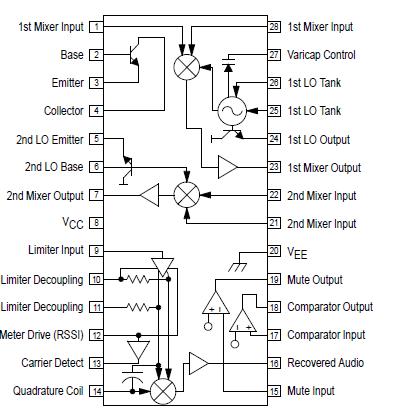

MC3363 Connection Diagram

MC3363 Connection Diagram
