Purchase MC33982, In-stock MC33982 From SeekIC.
- Table of contents:
MC33982
-
Suppliers
DataSheet
General Description
MC33982 Maximum Ratings
|
Rating |
Symbol |
Value |
Unit |
| Operating Voltage Range Steady-State |
VPWR |
-16 to 41 |
V |
| VDD Supply Voltage |
VDD |
0 to 5.5 |
V |
| Input/Output Voltage (Note 1) |
VIN, RST, FSI, CSNS, SI, SCLK, CS, FS |
-0.3 to 7.0 |
V |
| SO Output Voltage (Note 1) |
VSO |
-0.3 to VDD+0.3 |
V |
| WAKE Input Clamp Current |
ICL(WAKE) |
2.5 |
mA |
| CSNS Input Clamp Current |
ICL(CSNS) |
10 |
mA |
| Output Current (Note 2) |
IOUT |
60 |
A |
| Output Clamp Energy (Note 3) |
ECL |
1.5 |
J |
| Storage Temperature |
TSTG |
-55 to 150 |
°C |
| Operating Junction Temperature |
TJ |
-40 to 150 |
°C |
| Thermal Resistance (Note 4) Junction to Case Junction to Ambient |
RJC RJA |
<1.0 20 |
°C/W |
| ESD Voltage Human Body Model (Note 5) Machine Model (Note 6) |
VESD1 VESD2 |
±2000 ±200 |
V |
| Terminal Soldering Temperature (Note 7) |
TSOLDER |
240 |
°C |
MC33982 Features
• Single 2.0 m Max High-Side Switch with Parallel Input or SPI Control
• 6.0 V to 27 V Operating Voltage with Standby Currents < 5.0 A
• Output Current Monitoring Output with Two SPI-Selectable Current Ratios
• SPI Control of Overcurrent Limit, Overcurrent Fault Blanking Time,Output-OFF Open Load Detection, Output ON/OFF Control, Watchdog Timeout, Slew Rates, and Fault Status Reporting
• SPI Status Reporting of Overcurrent, Open and Shorted Loads,Overtemperature Shutdown, Undervoltage and Overvoltage Shutdown,Fail-Safe Terminal Status, and Program Status
• Enhanced 16 V Reverse Polarity VPWR Protection

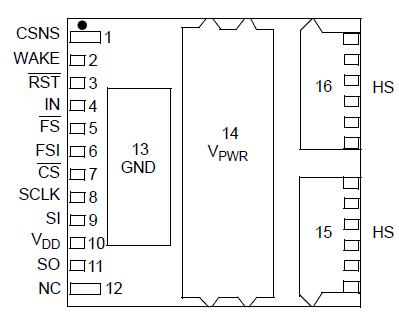

MC33982 Connection Diagram
MC33982
