MC34063
-
Suppliers
DataSheet
General Description
MC34063 Maximum Ratings
| Rating | Symbol | Value | Unit |
| Power Supply Voltage | VCC | 40 | Vdc |
| Comparator Input Voltage Range | VIR | 0.3 to +40 | Vdc |
| Switch Collector Voltage | VC(switch) | 40 | Vdc |
| Switch Emitter Voltage (VPin 1 = 40 V) | VE(switch) | 40 | Vdc |
| Switch Collector to Emitter Voltage | VCE(switch) | 40 | Vdc |
| Driver Collector Voltage | VC(driver) | 40 | Vdc |
| Driver Collector Current (Note 1.) | IC(driver) | 100 | mA |
| Switch Current | ISW | 1.5 | A |
|
Power Dissipation and Thermal Characteristics Plastic Package, P, P1 Suffix TA = 25 Thermal Resistance SOIC Package, D Suffix TA = 25 Thermal Resistance |
PD RqJA PD RqJA |
1.25 100 625 160 |
W /W W /W |
| Operating Junction Temperature | TJ | +150 | |
|
Operating Ambient Temperature Range MC34063A MC33063AV MC33063A |
TA |
0 to +70 40 to +125 40 to +85 |
|
| Storage Temperature Range | Tstg | 65 to +150 |

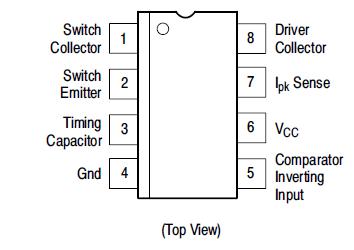

MC34063 Connection Diagram
