Part Number: MC34084



MFG: MOTO/ON



D/C: DIP

Description: These devices are a new generation of high speed JFET input monolithic operational amplifiers. Innov...


Urgent Purchase

MC34084 General Description


These devices are a new generation of high speed JFET input monolithic operational amplifiers. Innovative design concepts along with JFET technology provide wide gain bandwidth product and high slew rate. Wellmatched JFET input devices and advanced trim techniques ensure low input offset errors and bias currents. The all NPN output stage features large output voltage swing, no deadband crossover distortion, high capacitive drive capability, excellent phase and gain margins, low open loop output impedance, and symmetrical source/sink AC frequency response.

This series of devices is available in fully compensated or decompensated (AVCL2) and is specified over a commercial temperature range. They are pin compatible with existing Industry standard operational amplifiers, and allow the designer to easily upgrade the performance of existing designs.

MC34084 Maximum Ratings

Rating Symbol Value Unit
Supply Voltage (from VCC to VEE) VS +44 V
Input Differential Voltage Range VIDR (Note 1) V
Input Voltage Range VIR (Note 1) V
Output Short Circuit Duration (Note 2) tSC Indefinite sec
Operating Ambient Temperature Range TA 0 to +70 °C
Operating Junction Temperature TJ +125 °C
Storage Temperature Range Tstg 65 to +165 °C
NOTES:
1. Either or both input voltages must not exceed the magnitude of VCC or VEE.
2. Power dissipation must be considered to ensure maximum junction temperature (TJ) is not exceeded.

MC34084 Features

• Wide Gain Bandwidth: 8.0 MHz for Fully Compensated Devices
   Wide Gain Bandwidth: 16 MHz for Decompensated Devices
• High Slew Rate: 25 V/s for Fully Compensated Devices
   High Slew Rate: 50 V/s for Decompensated Devices
• High Input Impedance: 1012
• Input Offset Voltage: 0.5 mV Maximum (Single Amplifier)
• Large Output Voltage Swing: 14.7 V to +14 V for
   Large Output Voltage Swing: VCC/VEE = ±15 V
• Low Open Loop Output Impedance: 30 @ 1.0 MHz
• Low THD Distortion: 0.01%
• Excellent Phase/Gain Margins: 55°/7.6 dB for Fully Compensated Devices

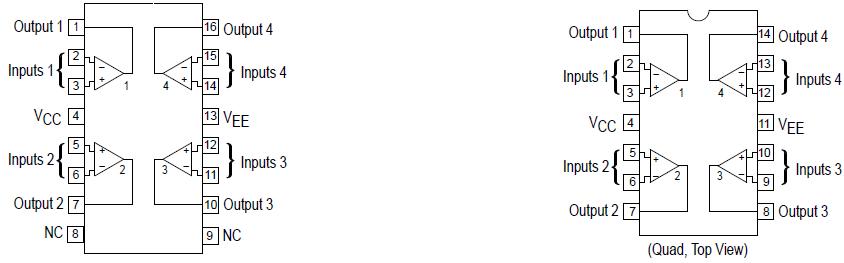

MC34084 Connection Diagram

MC34084 Connection Diagram
