Part Number: MC34151



MFG: MOT

Package Cooled: SMD-8



Description: The MC34151 is a dual inverting high speed driver specifically designed to interface low current digit...


Urgent Purchase

MC34151 General Description


The MC34151 is a dual inverting high speed driver specifically designed to interface low current digital circuitry with power MOSFETs. This device is constructed with Schottky clamped Bipolar Analog technology which offers a high degree of performance and ruggedness hostile industrial environments.

MC34151 Maximum Ratings

Rating
Rating Symbol
Value
Unit
Power Supply Voltage
VCC
20
V
Logic Inputs (Note 1)
Vin
−0.3 to +VCC
V
Drive Outputs (Note 2)
Totem Pole Sink or Source Current
Diode Clamp Current (Drive Output to VCC)
IO
IO(clamp)
1.5
1.0
A
Power Dissipation and Thermal Characteristics
D Suffix, Plastic Package Case 751
Maximum Power Dissipation @ TA = 50°C
Thermal Resistance, Junction−to−Air
P Suffix, Plastic Package, Case 626
Maximum Power Dissipation @ TA = 50°C
Thermal Resistance, Junction−to−Air
PD
R JA
PD
R JA
0.56
180
1.0
100
W
/W
W
/W
Operating Junction Temperature
TJ
150
Operating Ambient Temperature
MC34151
MC33151
TA
0 to +70
40 to +85
Storage Temperature Range
Tstg
65 to +150

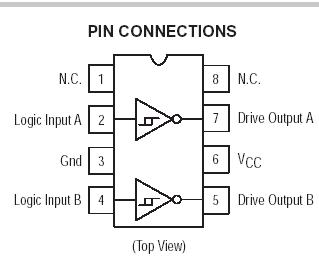

MC34151 Connection Diagram

MC34151 Connection Diagram

MC34151 datasheet

MC34151
PDF/DataSheet Download
