General Description
MC34280FTB Maximum Ratings
| Symbol | Parameter | Value | Unit |
| vcc | DC Supply Voltage (Referenced to GND) | 0.5 to +7.0 | V |
| VIN | DC Input Voltage (Referenced to GND) | 0.5 to VCC + 0.5 | V |
| VOUT | DC Output Voltage (Referenced to GND) | 0.5 to VCC + 0.5 | V |
| LIN | DC Input Current, per Pin | ±20 | mA |
| IOUT | DC Onput Current, per Pin | ±25 | mA |
| ICC | DC Supply Current Per Supply Pin | ±50 | mA |
| PD | Power dissipation in still air piastic DIP SOIC package |
750 500 |
mW |
| TSTG | Storage Temperature | 65 to +150 | °C |
| TL | Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package) |
260 | °C |
Functional operation should be restricted to the Recommended Operating Conditions.
?Derating - Plastic DIP: 10 mW/ from 65to 125
Ceramic DIP: 10 mW/ from 100 to 125
SOIC Package: 7 mW/ from 65 to 125
For high frequency or heavy load considerations, see Chapter 2 of the Motorola HighSpeed CMOS Data Book (DL129/D).
MC34280FTB Features
• Low Input Voltage, 1V up
• Low Quiescent Current in Standby Mode: 35mA typical
• PFM and Synchronous Rectification to ensure high efficiency (87% @200mA Load)
• Adjustable Main Output: nominal 3.3V @ 200mA max, with 1.8V input
• Auxiliary Output Voltage can be digitally controlled by microprocessor
• Auxiliary Output Voltage:
+5V @ 25mA max, with 1.8V input
+25V @ 15mA max, with 1.8V input
• Current Limit Protection
• PowerON Reset Signal with Programmable Delay
• Battery Low Detection
• Lithium Battery Backup
• 32Pin LQFP Package
MC34280FTB Typical Application
• Digital Organizer and Dictionary
• Personal Digital Assistance (PDA)
• Dual Output Power Supply (For MPU, Logic, Memory, LCD)
• Handheld Battery Powered Device (12 AA/AAA cell)

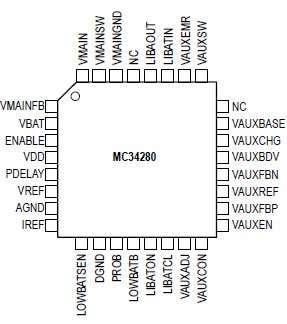

MC34280FTB Connection Diagram
MC34280FTB
