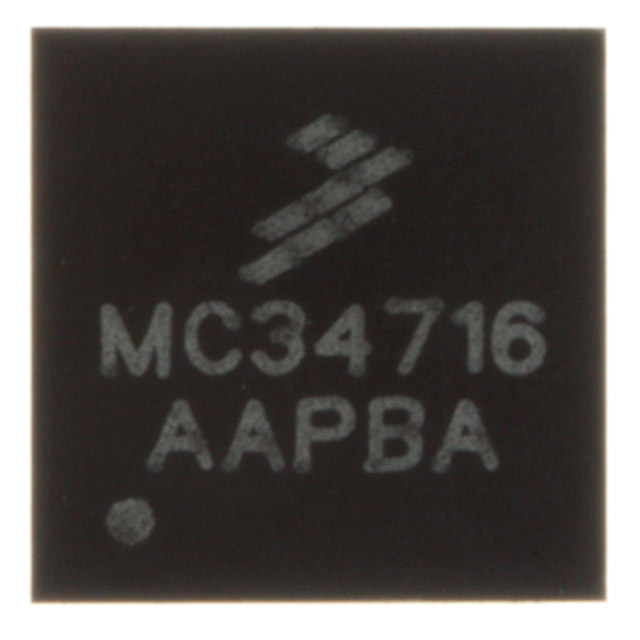

MC34716EP/R2

The MC34716EP/R2 is a highly integrated, space-efficient, low cost, dual synchronous buck switching regulator with integrated N-channel power MOSFETs. MC34716EP/R2 is a high performance point-of-load (PoL) power supply with its second output having the ability to track an external reference voltage. it provides a full power supply solution for Double-Data-Rate (DDR) Memories.

The features of MC34716EP/R2 can be summarized as:(1)50 m integrated N-channel power MOSFETs; (2)Input voltage operating range from 3.0 to 6.0 V; (3)±1% accurate output voltages, ranging from 0.7 to 3.6 V; (4)The second output tracks 1/2 an external reference voltage; (5)±1% accurate buffered reference output voltage; (6)Programmable switching frequency range from 200 kHz to 1.0 MHz; (7)Programmable soft start timing for channel one; (8)Over-current limit and short-circuit protection on both channels; (9)Thermal shutdown; (10)Output over-voltage and under-voltage detection; (11)Active low power good output signal; (12)Active low standby and shutdown inputs; (13)Pb-free packaging designated by suffix code EP.

The absolute maximum ratings of MC34716EP/R2 are:(1)Input Supply Voltage (VIN) Pin:-0.3V to 7.0 V; (2)High Side MOSFET Drain Voltage (PVIN) Pin:-0.3V to 7.0 V; (3)Switching Node (SW) Pin:-0.3V to 7.0 V; (4)BOOT Pin (Referenced to SW Pin):-0.3V to 7.0 V; (5)PG, VOUT, SD, and STBY Pins:-0.3V to 7.0 V; (6)VDDI, FREQ, INV, COMP, VREFIN, and VREFOUT Pins:-0.3V to 3.0 V; (7)Channel1 Continuous Output Current:+5.0 A; (8)Operating Ambient Temperature:-40°C to 85 °C; (9)Storage Temperature:-65°C to +150 °C; (10)Maximum Junction Temperature):+150 °C; (11)Power Dissipation (TA = 85 °C):2.03 W;(12)Channel2 Continuous Output Current:±3.0 A.
