Product Details

Description

Features:

`GOOD CONSUMPTION/SPEED RATIO :
ONLY 200A FOR 2.1MHz, 2V/s
`SINGLE (OR DUAL) SUPPLY OPERATION FROM +4V TO +44V (±2V TO ±22V)
`WIDE INPUT COMMON MODE VOLTAGE RANGE INCLUDING V_CC ^-
.LOW LEVEL OUTPUT VOLTAGE CLOSE TO V_CC^-: 100mV TYPICAL
`PIN TO PIN COMPATIBLE WITH STANDARD SINGLE OP AMPs

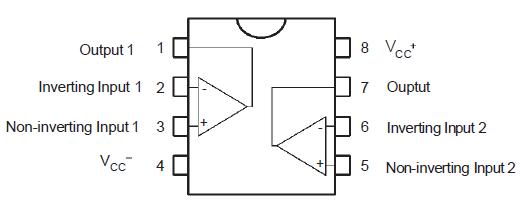

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	±22	V
V_id	Differential Input Voltage	(Note 1)	V
Vi	Input Voltage	(Note 1)	V
	Output Short Circuit Duration	Indefinite	s
T_oper	Operating Temperature Range MC33172 MC35172	-40 to 105 -55 to 125
T_j	Junction Temperature	150
T_stg	Storage Temperature	65 to + 150

Note 1: Either or both input voltages must not exceed the magnitude of V_CC.

Description

The MC33172 series are dual bipolar operational amplifiers offering both low consumption (200A/Amp) and good speed (2.1MHz, 2V/s).

Moreover the Input Common Mode Range of MC33172 series extends down to the lower supply rail, allowing single supply operation from +4V to +44V.
