Part Number: MC35174



MFG: MOTOROLA.

Package Cooled: -14



Description: The MC33174 series are quad bipolar operational amplifiers offering both low consumption (200

Urgent Purchase

MC35174 General Description


The MC33174 series are quad bipolar operational amplifiers offering both low consumption (200A/Amp) and good speed (2.1MHz, 2V/s).

Moreover the Input Common Mode Range extends down to the lower supply rail, allowing single supply operation from +4V to +44V.

MC35174 Maximum Ratings

Symbol Parameter
Value
Unit
VCC Supply Voltage
±22
V
Vid Differential Input Voltage
(Note 1)
V
Vi Input Voltage
(Note 1)
V
  Output Short Circuit Duration
Indefinite
s
Toper Operating Temperature Range   MC33174
                                                   MC35174

-40 to 105
-55 to 125

Tj Junction Temperature
150
Tstg Storage Temperature
65 to + 150

Note 1: Ei ther or both input voltages must not exceed the magnitude of VCC.

MC35174 Features

`GOOD CONSUMPTION/SPEED RATIO :
 ONLY 200A FOR 2.1MHz, 2V/s
`SINGLE (OR DUAL) SUPPLY OPERATION FROM +4V TO +44V (±2V TO ±22V)
`WIDE INPUT COMMON MODE VOLTAGE  RANGE INCLUDING VCC -
.LOW LEVEL OUTPUT VOLTAGE CLOSE TO VCC - : 100mV  TYPICAL
`PIN TO PIN COMPATIBLE WITH STANDARD SINGLE OP AMPs
`ESD PROTECTION

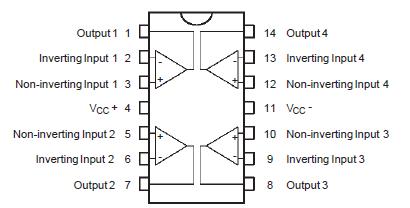

MC35174 Connection Diagram

MC35174 Connection Diagram
