Part Number: MC44725A
Description: The MC44724A and MC44725A are advanced Digital Video Encoders (DVE). They convert ITU-601/656 standard...
- Table of contents:
MC44725A
-
Suppliers
DataSheet
General Description
MC44725A General Description
The MC44724A and MC44725A are advanced Digital Video Encoders (DVE). They convert ITU-601/656 standard 4:2:2 Bit- Paralellel data into analog composite video, S-Video or analog component signals Y/Cb/Cr or R/G/B in PAL and NTSC formats. They accept the multiplexed two 8-bit or 16-bit ((CB,Y,CR)Y) signals from digital sources such as MPEG decoders and can act as a sync generator master or as a sync slave. All video processing is done digitally and requires no external adjustment.
Specifically designed for digital satellite, digital cable decoders, multimedia terminals and DVD players.
MC44725A Maximum Ratings
| DC Supply Voltage |
Vdd |
-0.5~+7.0 |
V |
Other |
| Input Voltage, All Inputs |
Vin |
-1.5~Vdd+1.5 |
V |
-1.5 ~ Vdd+1.95V at Vdd=3.3V |
| Output Voltage, All Outputs |
Vout |
-0.5~Vdd+1.5 |
V |
|
| DC Output Current, per Pin |
Iout |
25 |
mA |
|
| Power Dissipation |
Pd |
750 |
mW |
|
| Storage Temperature |
Tstg |
-65 ~ +150 |
MC44725A Features
• World Wide Operation (PAL-BDGHI, PAL-N,PAL-M, NTSC-M)
• SMPTE 170M / ITU - R 624 composite video output
• Programmable Color Sub-carrier Frequencies
• Analog standard timing for Horizontal, Vertical, Frame and Composite Sync Outputs
• Sync Extraction From Digital Input Data (SAV, EAV)
• Sync Polarity and Horizontal / Vertical Phase Control
• Master or Slave Sync (H/Vsync, H/Fsync, ITU-R656 Slave) Operation
• Interlaced or Non-Interlaced Support
• 625/50 or 525/60 ITU-601/656 two 8-bit or 16-bit ((CB,Y,CR)Y) Digital Input
• Luma 2X / Chroma 4X Output interpolating Filter
• Dual Digital A / B selectable inputs
• External VBI Information Data Input (Teletext Information Data)
• Selectable Two sets of Signals within (CVBS/Y/C) or (Y/Cb/Cr) or (R/G/B)
• Selectable Analog Component Output ( Beta Cam or MII Component Interface Level )
• Six Analog Outputs Through 10-bit DACs
• Easily programmed via Serial Bus ( I2C or 4-Wired SPI Bus)
• 2 Hardware selectable I2C Chip Addresses
• Closed-Caption, CGMS and WSS Information data Insertion
• MACROVISION ver. 7.01 Anti-Copy Signal Insertion(MC44724A Only)
• On Chip Color - bar Generator
• 5V Tolerante Input
• +3.3V Power Supply or +3.3V(Digital)/+5V(Analog) Power Supply
• Pin Compatible with MC44724/5
The MC44724A device is protected by U.S. patent number 4,631,603,4,577,216 and 4,819,098 and other intellectual property rights. The use of Macrovision's copy protection technology in the device must be authorized by Macrovision and is intended for home and other limited payper- view uses only, unless otherwise authorized in writing by Macrovision. Reverse engineering or disassembly is prohibited.
• SMPTE 170M / ITU - R 624 composite video output
• Programmable Color Sub-carrier Frequencies
• Analog standard timing for Horizontal, Vertical, Frame and Composite Sync Outputs
• Sync Extraction From Digital Input Data (SAV, EAV)
• Sync Polarity and Horizontal / Vertical Phase Control
• Master or Slave Sync (H/Vsync, H/Fsync, ITU-R656 Slave) Operation
• Interlaced or Non-Interlaced Support
• 625/50 or 525/60 ITU-601/656 two 8-bit or 16-bit ((CB,Y,CR)Y) Digital Input
• Luma 2X / Chroma 4X Output interpolating Filter
• Dual Digital A / B selectable inputs
• External VBI Information Data Input (Teletext Information Data)
• Selectable Two sets of Signals within (CVBS/Y/C) or (Y/Cb/Cr) or (R/G/B)
• Selectable Analog Component Output ( Beta Cam or MII Component Interface Level )
• Six Analog Outputs Through 10-bit DACs
• Easily programmed via Serial Bus ( I2C or 4-Wired SPI Bus)
• 2 Hardware selectable I2C Chip Addresses
• Closed-Caption, CGMS and WSS Information data Insertion
• MACROVISION ver. 7.01 Anti-Copy Signal Insertion(MC44724A Only)
• On Chip Color - bar Generator
• 5V Tolerante Input
• +3.3V Power Supply or +3.3V(Digital)/+5V(Analog) Power Supply
• Pin Compatible with MC44724/5
The MC44724A device is protected by U.S. patent number 4,631,603,4,577,216 and 4,819,098 and other intellectual property rights. The use of Macrovision's copy protection technology in the device must be authorized by Macrovision and is intended for home and other limited payper- view uses only, unless otherwise authorized in writing by Macrovision. Reverse engineering or disassembly is prohibited.

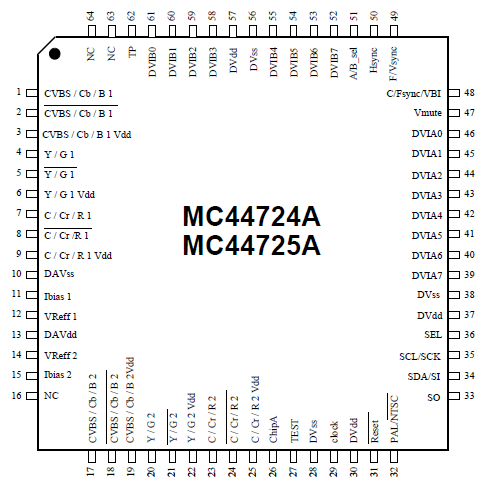

MC44725A Connection Diagram
MC44725A
PDF/DataSheet Download
- Datasheet: MC44725A
- File Size: 381628 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
