Part Number: MC544HC00A
Description: The MC54/74HC00A is identical in pinout to the LS00. The device inputs are compatible with Standard CMOS outputs; with ...
- Table of contents:
MC544HC00A
-
Suppliers
DataSheet
General Description
MC544HC00A General Description
The MC54/74HC00A is identical in pinout to the LS00. The device inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.
MC544HC00A Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
DC Supply Voltage (Referenced to GND) |
0.5 to + 7.0 |
V |
|
Vin |
DC Input Voltage (Referenced to GND) |
0.5 to VCC + 0.5 |
V |
|
Vout |
DC Output Voltage (Referenced to GND) |
0.5 to VCC + 0.5 |
V |
|
Iin |
DC Input Current, per Pin |
± 20 |
mA |
|
Iout |
DC Output Current, per Pin |
± 25 |
mA |
|
ICC |
DC Supply Current, VCC and GND Pins |
± 50 |
mA |
|
PD |
Power Dissipation in Still Air, Plastic or Ceramic DIP† SOIC Package† TSSOP Package† |
750 500 450 |
mW |
|
Tstg |
Storage Temperature |
65 to + 150 |
|
|
TL |
Lead Temperature, 1 mm from Case for 10 Seconds Plastic DIP, SOIC or TSSOP Package Ceramic DIP |
260 300 |
Functional operation should be restricted to the Recommended Operating Conditions.
†Derating - Plastic DIP: 10 mW/ from 65° to 125
Ceramic DIP: 10 mW/ from 100° to 125
SOIC Package: 7 mW/ from 65° to 125
TSSOP Package: 6.1 mW/ from 65° to 125
For high frequency or heavy load considerations, see Chapter 2 of the Motorola HighSpeed CMOS Data Book (DL129/D).
MC544HC00A Features
• Output Drive Capability: 10 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 2 to 6V
• Low Input Current: 1mA
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance With the JEDEC Standard No. 7A Requirements
• Chip Complexity: 32 FETs or 8 Equivalent Gates
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 2 to 6V
• Low Input Current: 1mA
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance With the JEDEC Standard No. 7A Requirements
• Chip Complexity: 32 FETs or 8 Equivalent Gates

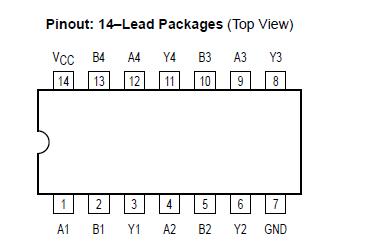

MC544HC00A Connection Diagram
