Part Number: MC54F139
Description: The MC54/74F139 is a high speed Dual 1-of-4 Decoder/Demultiplexer.The device has two independen...
- Table of contents:
MC54F139
-
Suppliers
DataSheet
General Description
MC54F139 General Description
The MC54/74F139 is a high speed Dual 1-of-4 Decoder/Demultiplexer.The device has two independent decoders, each accepting two inputs and providing four mutually exclusive active LOW outputs. Each decoder has an active LOW Enable input which can be used as a data input for a 4-output demultiplexer. Each half of the F139 can be used as a function generator providing all four miniterms of two variables.
MC54F139 Features
*Multifunction Capability
*Two Completely Independent 1-of-4 Decoders
*Active Low Mutually Exclusive Outputs
*Input Clamp Diodes Limit High-Speed Termination Effects
*Two Completely Independent 1-of-4 Decoders
*Active Low Mutually Exclusive Outputs
*Input Clamp Diodes Limit High-Speed Termination Effects

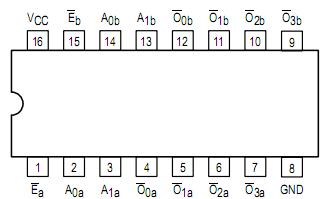

MC54F139 Connection Diagram
MC54F139J
PDF/DataSheet Download
- Datasheet: MC54F139J
- File Size: 74035 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
