MC54F828 General Description


The MC54/74F827 and MC54/74F828 10-bit bus buffers provide high performance bus interface buffering for wide data/address paths or buses carrying parity. The 10-bit buffers have NOR output enables for maximum control flexibility.

The F827 and F828 are functionally and pin compatible to AMD's 29827 and 29828. The F828 is an inverting version of the F827.

MC54F828 Features

• 3-State Outputs Drive Memory Address, Bus and Clock Lines
• Outputs Sink 64 mA
• 15 mA Source Current
• Flow Through Pinout Architecture for Microprocessor Oriented Applications

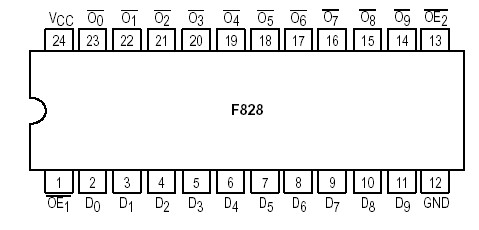

MC54F828 Connection Diagram
