Part Number: MC54HC589
MFG: MOT
D/C: N/A
Description: The MC54/74HC589 is similar in function to the HC597, which is not a 3state device. The device inputs ...
- Table of contents:
MC54HC589
-
Suppliers
DataSheet
General Description
MC54HC589 General Description
The MC54/74HC589 is similar in function to the HC597, which is not a 3state device. The device inputs are compatible with standard CMOS outputs, with pullup resistors, they are compatible with LSTTL outputs.
This device consists of an 8bit storage latch which feeds parallel data to an 8bit shift register. Data can also be loaded serially (see Function Table). The shift register output, QH, is a threestate output, allowing this device to be used in busoriented systems.
The HC589 directly interfaces with the Motorola SPI serial data port on CMOS MPUs and MCUs.
MC54HC589 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| vcc | DC Supply Voltage (Referenced to GND) | 0.5 to +7.0 | V |
| VIN | DC Input Voltage (Referenced to GND) | 0.5 to VCC + 0.5 | V |
| VOUT | DC Output Voltage (Referenced to GND) | 0.5 to VCC + 0.5 | V |
| LIN | DC Input Current, per Pin | ±20 | mA |
| IOUT | DC Onput Current, per Pin | ±35 | mA |
| ICC | DC Supply Current Per Supply Pin | ±75 | mA |
| PD | Power dissipation in still air piastic DIP SOIC package |
750 500 |
mW |
| TSTG | Storage Temperature | 65 to +150 | °C |
| TL | Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package) |
260 | °C |
Functional operation should be restricted to the Recommended Operating Conditions.
†Derating - Plastic DIP: 10 mW/C from 65 to 125C
Ceramic DIP: 10 mW/C from 100 to 125C
SOIC Package: 7 mW/C from 65 to 125C
For high frequency or heavy load considerations, see Chapter 2 of the Motorola HighSpeed CMOS Data Book (DL129/D).
MC54HC589 Features
• Output Drive Capability: 15 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 2 to 6 V
• Low Input Current: 1 mA
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 526 FETs or 131.5 Equivalent Ga
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 2 to 6 V
• Low Input Current: 1 mA
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 526 FETs or 131.5 Equivalent Ga

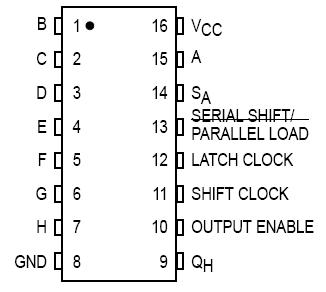

MC54HC589 Connection Diagram
