Purchase MC56F8014VFAE, In-stock MC56F8014VFAE From SeekIC.

MFG:Freescale Semiconductor  Category:Integrated Circuits (ICs)

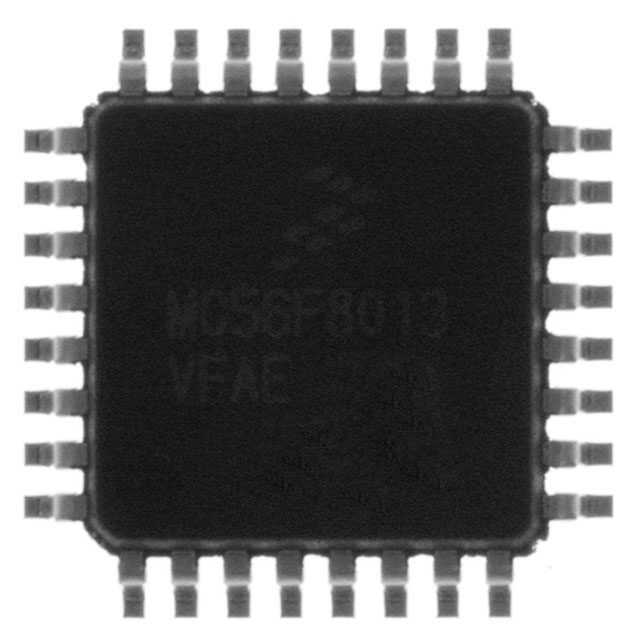

MC56F8014VFAE Product Image

MC5 Series Datasheet download

Five Points

Part Number: MC56F8014VFAE

Category: Integrated Circuits (ICs)

MFG: Freescale Semiconductor





Descriptions: IC DIGITAL SIGNAL CTRLR 32-LQFP

Price Break

250

Unit Price

3.41728

Extended Price

854.32

(All prices are in USD) Prices for reference only
Urgent Purchase

MC56F8014VFAE General Description

IC DIGITAL SIGNAL CTRLR 32-LQFP

MC56F8014VFAE Parameters

Technical/Catalog InformationMC56F8014VFAE
VendorFreescale Semiconductor
CategoryIntegrated Circuits (ICs)
Program Memory Size16KB (16K x 8)
RAM Size4K x 8
Number of I /O26
Package / Case32-LQFP
Speed32MHz
Controller Series56F8xxx
Oscillator TypeInternal
PackagingTray
Program Memory TypeFLASH
EEPROM Size-
Core Processor56800
Data ConvertersA/D 8x12b
Core Size16-Bit
Operating Temperature-40°C ~ 105°C
ConnectivityI²C, SCI, SPI
PeripheralsPOR, PWM, WDT
Voltage - Supply (Vcc/Vdd)3 V ~ 3.6 V
Drawing Number375; 873A-03; ; 32
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MC56F8014VFAE
MC56F8014VFAE

MC56F8014VFAE datasheet

MC56F8014VFAE
PDF/DataSheet Download

  • Datasheet: MC56F8014VFAE
  • File Size: 1923500 KB
  • Manufacturer: FREESCALE [Freescale Semiconductor, Inc]
  • Click here to Download
