Part Number: MC56HC589A
Description: The MC54/74HC589A is similar in function to the HC597, which is not a 3state device. The device inputs are compatibl...
- Table of contents:
MC56HC589A
-
Suppliers
DataSheet
General Description
MC56HC589A General Description
The MC54/74HC589A is similar in function to the HC597, which is not a 3state device. The device inputs are compatible with standard CMOS outputs, with pullup resistors, they are compatible with LSTTL outputs.
This device consists of an 8bit storage latch which feeds parallel data to an 8bit shift register. Data can also be loaded serially (see Function Table). The shift register output, QH, is a threestate output, allowing this device to be used in busoriented systems.
The HC589A directly interfaces with the Motorola SPI serial data port on CMOS MPUs and MCUs.
MC56HC589A Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
DC Supply Voltage (Referenced to GND) |
0.5 to + 7.0 |
V |
|
Vin |
DC Input Voltage (Referenced to GND) |
0.5 to VCC + 0.5 |
V |
|
Vout |
DC Output Voltage (Referenced to GND) |
0.5 to VCC + 0.5 |
V |
|
Iin |
DC Input Current, per Pin |
± 20 |
mA |
|
Iout |
DC Output Current, per Pin |
± 35 |
mA |
|
ICC |
DC Supply Current, VCC and GND Pins |
± 75 |
mA |
|
PD |
Power Dissipation in Still Air,Plastic DIP† |
750 500 450 |
mW |
|
Tstg |
Storage Temperature |
65 to + 150 |
C |
|
TL |
Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP, SOIC or TSSOP Package) |
260 |
C |
MC56HC589A Features
• Output Drive Capability: 15 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 2 to 6 V
• Low Input Current: 1 µA
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 526 FETs or 131.5 Equivalent Gates
MC56HC589A Connection Diagram
MC500
PDF/DataSheet Download
- Datasheet: MC500
- File Size: 337495 KB
- Manufacturer: ETC [ETC]
- Click here to Download
- ·MC504
- ETC [ETC]
- EXPANDABLE 3-WIDE 3-INPUT AND-OR-INVERT GATE
- 337495 KB
- ·MC515
- Motorola
- MC515_Motorola.pdf
- 303147 KB
- ·MC520
- Motorola Semiconductor
- 289911 KB
- ·MC524
- ETC [ETC]
- DUAL J-K FLIP-FLOP
- 304897 KB
- ·MC54
- MOTOROLA [Motorola, Inc]
- QUAD 2-INPUT NAND GATE FAST SCHOTTKY TTL
- 42463 KB
- ·MC54/74F00
- QUAD 2-INPUT NAND GATE FASTE SCHOTTKY TTL
- 42463 KB
- ·MC54/74F02
- QUAD 2-INPUT NOR GATE FASTE SCHOTTKY TTL
- 47347 KB
- ·MC54/74F04
- HEX INVERTER FASTE SCHOTTKY TTL
- 42462 KB
MC56HC589A Relative Products
MC56HC259A
The MC54/74HC259A is identical in pinout to the LS259. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. The HC259A has four modes of operation as shown in the mode selection table. I...

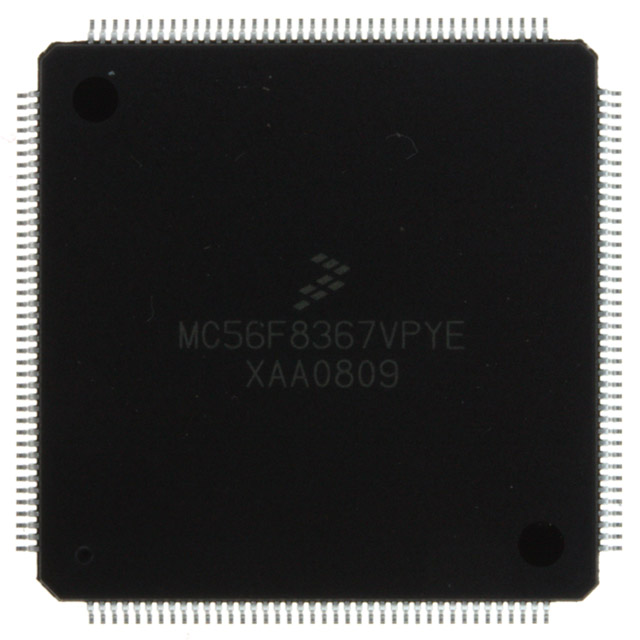

MC56F8367VPYE
