Position: Home > Datasheet list > MC7 Series > Index M > MC74AC08NG
Electronica China

Purchase MC74AC08NG, In-stock MC74AC08NG From SeekIC.

MFG:ON Semiconductor  Category:Integrated Circuits (ICs)

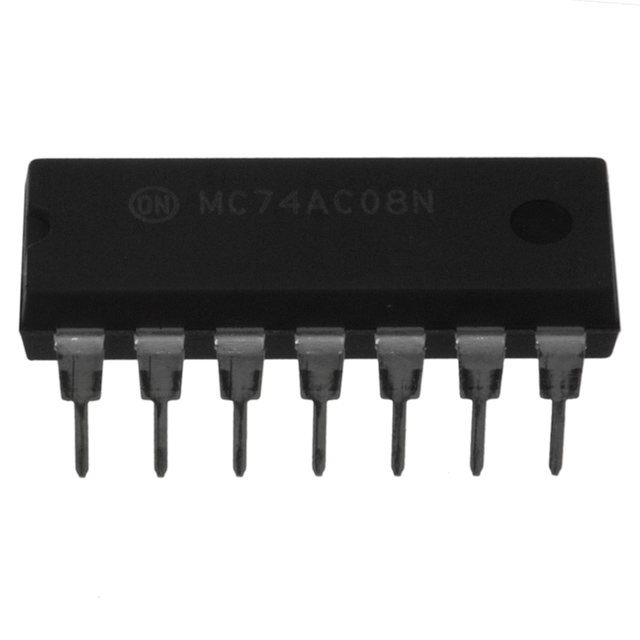

MC74AC08NG Product Image

MC7 Series Datasheet download

Five Points

Part Number: MC74AC08NG

Category: Integrated Circuits (ICs)

MFG: ON Semiconductor





Descriptions: IC GATE AND QUAD 2IN 24MA 14DIP

Price Break

1
25
100
250
500
1000
2500
5000

Unit Price

.55000
.45680
.40440
.33920
.27396
.20874
.19569
.18591

Extended Price

0.55
11.42
40.44
84.80
136.98
208.74
489.23
929.55

(All prices are in USD) Prices for reference only
Urgent Purchase

MC74AC08NG General Description

IC GATE AND QUAD 2IN 24MA 14DIP

MC74AC08NG Parameters

Technical/Catalog InformationMC74AC08NG
VendorON Semiconductor
CategoryIntegrated Circuits (ICs)
Number of Circuits4 - Quad
Package / Case14-DIP (300 mil)
Logic TypeAND Gate
PackagingTube
Mounting TypeThrough Hole
Number of Inputs2
Current - Output High, Low24mA, 24mA
Supply Voltage2 V ~ 6 V
Operating Temperature-40°C ~ 85°C
Voltage - Supply2 V ~ 6 V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MC74AC08NG
MC74AC08NG
MC74AC08NGOS ND
MC74AC08NGOSND
MC74AC08NGOS

MC74AC08NG datasheet
