Position: Home > Datasheet list > MC7 Series > Index M > MC74AC132DR2
Electronica China

Purchase MC74AC132DR2, In-stock MC74AC132DR2 From SeekIC.

MFG:ON Semiconductor  Category:Integrated Circuits (ICs)

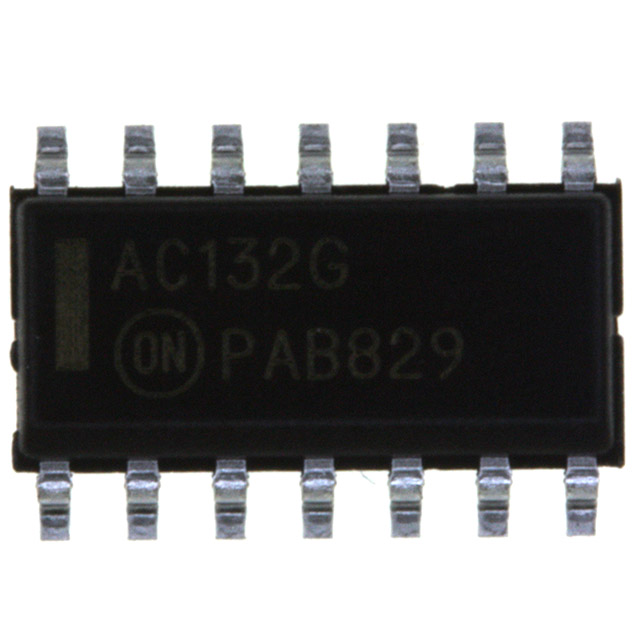

MC74AC132DR2 Product Image

MC7 Series Datasheet download

Five Points

Part Number: MC74AC132DR2

Category: Integrated Circuits (ICs)

MFG: ON Semiconductor





Descriptions: IC SCHMITT TRIG NAND QD 14-SOIC

Price Break

2500

Unit Price

.47250

Extended Price

1181.25

(All prices are in USD) Prices for reference only
Urgent Purchase

MC74AC132DR2 General Description

IC SCHMITT TRIG NAND QD 14-SOIC

MC74AC132DR2 Parameters

Technical/Catalog InformationMC74AC132DR2
VendorON Semiconductor
CategoryIntegrated Circuits (ICs)
Number of Circuits4 - Quad
Package / Case14-SOIC (3.9mm Width), 14-SOL
Logic TypeNAND Gate - Schmitt Trigger
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Inputs2
Current - Output High, Low24mA, 24mA
Supply Voltage2 V ~ 6 V
Operating Temperature-40°C ~ 85°C
Voltage - Supply2 V ~ 6 V
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names MC74AC132DR2
MC74AC132DR2
