Part Number: MC74AC564
Description: The MC74AC564/74ACT564 is a high-speed, low power octal flip-flop with a buffered common Clock (CP) an...
- Table of contents:
MC74AC564
-
Suppliers
DataSheet
General Description
MC74AC564 General Description
The MC74AC564/74ACT564 is a high-speed, low power octal flip-flop with a buffered common Clock (CP) and a buffered common Output Enable (OE). The information presented to the D inputs is stored in the flip-flops on the LOW-to- HIGH Clock (CP) transition.
The MC74AC564/74ACT564 device is functionally identical to the MC74AC574/ 74ACT574, but with inverted outputs.
MC74AC564 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
DC Supply Voltage (Referenced to GND) |
0.5 to +7.0 |
V |
|
Vin |
DC Input Voltage (Referenced to GND) |
0.5 to VCC +0.5 |
V |
|
Vout |
DC Output Voltage (Referenced to GND) |
0.5 to VCC +0.5 |
V |
|
Iin |
DC Input Current, per Pin |
±20 |
mA |
|
Iout |
DC Output Sink/Source Current, per Pin |
±50 |
mA |
|
ICC |
DC VCC or GND Current per Output Pin |
±50 |
mA |
|
Tstg |
Storage Temperature |
65 to +150 |
should be restricted to the Recommended Operating Conditions.
MC74AC564 Features
• Inputs and Outputs on Opposite Sides of Package Allowing Easy Interface with Microprocessors
• Useful as Input or Output Port for Microprocessors
• Functionally Identical to MC74AC574/74ACT574 but with Inverted Outputs
• 3-State Outputs for Bus-Oriented Applications
• Outputs Source/Sink 24 mA
• 'ACT564 Has TTL Compatible Inputs
• Useful as Input or Output Port for Microprocessors
• Functionally Identical to MC74AC574/74ACT574 but with Inverted Outputs
• 3-State Outputs for Bus-Oriented Applications
• Outputs Source/Sink 24 mA
• 'ACT564 Has TTL Compatible Inputs

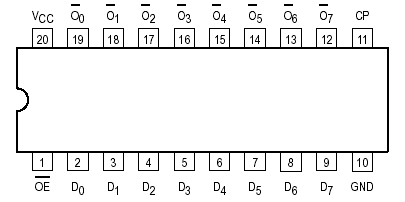

MC74AC564 Connection Diagram
MC74AC564
