Part Number: MC74AC574
MFG: ON
Package Cooled: SOP20
D/C: 06+
Description: The MC74AC574/74ACT574 is a high-Cspeed, low power octa flip-Cflop with...
- Table of contents:
MC74AC574
-
Suppliers
DataSheet
General Description
MC74AC574 General Description
The MC74AC574/74ACT574 is a high-Cspeed, low power octa flip-Cflop with a buffered common Clock (CP) and a buffered commo The information presented to the D inputs is Output Enable (OE). stored in the flip-Cflops on the LOW-Cto-CHI Clock (CP) transition.
The MC74AC574/74ACT574 is functionally identical to the MC74AC374/74ACT374 except for the pinouts.
MC74AC574 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
DC Supply Voltage (Referenced to GND) |
-0.5 to +7 |
V |
|
VIN |
DC Input Voltage (Referenced to GND) |
-0.5 to VCC +0.5 |
V |
|
VOUT |
DC Output Voltage (Referenced to GND) |
-0.5 to VCC +0.5 |
V |
|
IIN |
DC Input Current, per Pin |
20 |
mA |
|
IOUT |
DC Output Sink/Source Current, per Pin |
50 |
mA |
|
ICC |
DC VCC or GND Current per Output Pin |
50 |
mA |
|
Tstg |
Storage Temperature |
-65 to +15 |
MC74AC574 Features
*Inputs and Outputs on Opposite Sides of Package
Allowing Easy Interface with Microprocessors
*Useful as Input or Output Port for Microprocessors
*Functionally Identical to MC74AC374/74ACT374
*3-State Outputs for Bus-Oriented Applications
*Outputs Source/Sink 24 mA
*ACT574 Has TTL Compatible Inputs
Allowing Easy Interface with Microprocessors
*Useful as Input or Output Port for Microprocessors
*Functionally Identical to MC74AC374/74ACT374
*3-State Outputs for Bus-Oriented Applications
*Outputs Source/Sink 24 mA
*ACT574 Has TTL Compatible Inputs

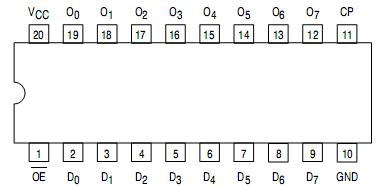

MC74AC574 Connection Diagram
MC74AC574
PDF/DataSheet Download
- Datasheet: MC74AC574
- File Size: 110188 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
