MC74ACT02
-
Suppliers
DataSheet
General Description
MC74ACT02 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
DC Supply Voltage (Referenced to GND) |
0.5 to +7.0 |
V |
|
Vin |
DC Input Voltage (Referenced to GND) |
0.5 to VCC +0.5 |
V |
|
Vout |
DC Output Voltage (Referenced to GND) |
0.5 to VCC +0.5 |
V |
|
Iin |
DC Input Current, per Pin |
±20 |
mA |
|
Iout |
DC Output Sink/Source Current, per Pin |
±50 |
mA |
|
ICC |
DC VCC or GND Current per Output Pin |
±50 |
mA |
|
Tstg |
Storage Temperature |
65 to +150 |
should be restricted to the Recommended Operating Conditions.
MC74ACT02 Features
• Outputs Source/Sink 24 mA
• 'ACT02 Has TTL Compatible Inputs
• 'ACT02 Has TTL Compatible Inputs

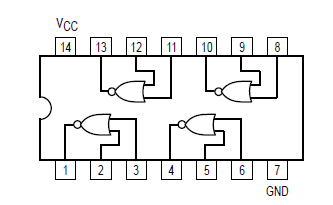

MC74ACT02 Connection Diagram
MC74ACT02
PDF/DataSheet Download
- Datasheet: MC74ACT02
- File Size: 73135 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
