General Description
MC74ACT113 General Description
The MC74AC113/74ACT113 consists of two high-speed completely independent transition clocked JK flip-flops. The clocking operation is independent of rise and fall times of the clock waveform. The JK design allows operation as a D flip-flop (refer to MC74AC74/74ACT74 data sheet) by connecting the J and K inputs together.
Asynchronous Inputs:
LOW input to S D (Set) sets Q to HIGH level
Set is independent of clock
MC74ACT113 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
DC Supply Voltage (Referenced to GND) |
0.5 to +7.0 |
V |
|
Vin |
DC Input Voltage (Referenced to GND) |
0.5 to VCC +0.5 |
V |
|
Vout |
DC Output Voltage (Referenced to GND) |
0.5 to VCC +0.5 |
V |
|
Iin |
DC Input Current, per Pin |
±20 |
mA |
|
Iout |
DC Output Sink/Source Current, per Pin |
±50 |
mA |
|
ICC |
DC VCC or GND Current per Output Pin |
±50 |
mA |
|
Tstg |
Storage Temperature |
65 to +150 |
should be restricted to the Recommended Operating Conditions.
MC74ACT113 Features
• Outputs Source/Sink 24 mA
•'4ACT113 Has TTL Compatible Inputs
•'4ACT113 Has TTL Compatible Inputs

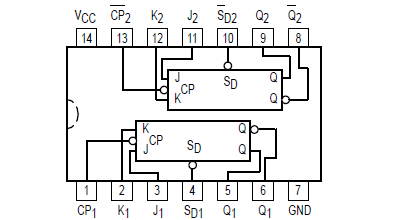

MC74ACT113 Connection Diagram
