Part Number: MC74ACT139



MFG: MOTO

Package Cooled: SMD



Description: The MC74AC139/74ACT139 is a highspeed, dual 1of4 decoder/demultiplexer. The device has two independent...


Urgent Purchase

MC74ACT139 General Description


The MC74AC139/74ACT139 is a highspeed, dual 1of4 decoder/demultiplexer. The device has two independent decoders, each accepting two inputs and providing four mutuallyexclusive activeLOW outputs. Each decoder has an activeLOW Enable input which can be used as a data input for a 4output demultiplexer. Each half of the MC74AC139/74ACT139 can be used as a function generator providing four minterms of two variables.

MC74ACT139 Maximum Ratings

Symbol
Parameter
Value
Unit
VCC
 DC Supply Voltage (Referenced to GND)
0.5 to +7.0
V
Vin
 DC Input Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Vout
 DC Output Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Iin
 DC Input Current, per Pin
±20
mA
Iout
 DC Output Sink/Source Current, per Pin
±50
mA
ICC
 DC VCC or GND Current per Output Pin
±50
mA
Tstg
 Storage Temperature
65 to +150
* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation
   should be restricted to the Recommended Operating Conditions.

MC74ACT139 Features

• Multifunctional Capability
• Two Completely Independent 1of4 Decoders
• Active LOW Mutually Exclusive Outputs
• Outputs Source/Sink 24 mA
• 'ACT139 Has TTL Compatible Inputs

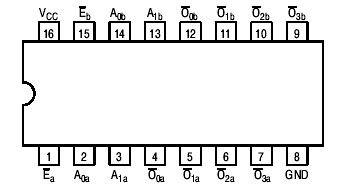

MC74ACT139 Connection Diagram

MC74ACT139 Connection Diagram

MC74ACT139 datasheet

MC74ACT139
PDF/DataSheet Download
