Part Number: MC74ACT564
Description: The MC74AC564/74ACT564 is a high-speed, low power octal flip-flop with a buffered common Clock (CP) an...
- Table of contents:
MC74ACT564
-
Suppliers
DataSheet
General Description
MC74ACT564 General Description
The MC74AC564/74ACT564 is a high-speed, low power octal flip-flop with a buffered common Clock (CP) and a buffered common Output Enable (OE). The information presented to the D inputs is stored in the flip-flops on the LOW-to- HIGH Clock (CP) transition.
The MC74AC564/74ACT564 device is functionally identical to the MC74AC574/ 74ACT574, but with inverted outputs.
MC74ACT564 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
DC Supply Voltage (Referenced to GND) |
0.5 to +7.0 |
V |
|
Vin |
DC Input Voltage (Referenced to GND) |
0.5 to VCC +0.5 |
V |
|
Vout |
DC Output Voltage (Referenced to GND) |
0.5 to VCC +0.5 |
V |
|
Iin |
DC Input Current, per Pin |
±20 |
mA |
|
Iout |
DC Output Sink/Source Current, per Pin |
±50 |
mA |
|
ICC |
DC VCC or GND Current per Output Pin |
±50 |
mA |
|
Tstg |
Storage Temperature |
65 to +150 |
should be restricted to the Recommended Operating Conditions.
MC74ACT564 Features
• Inputs and Outputs on Opposite Sides of Package Allowing Easy Interface with Microprocessors
• Useful as Input or Output Port for Microprocessors
• Functionally Identical to MC74AC574/74ACT574 but with Inverted Outputs
• 3-State Outputs for Bus-Oriented Applications
• Outputs Source/Sink 24 mA
• 'ACT564 Has TTL Compatible Inputs
• Useful as Input or Output Port for Microprocessors
• Functionally Identical to MC74AC574/74ACT574 but with Inverted Outputs
• 3-State Outputs for Bus-Oriented Applications
• Outputs Source/Sink 24 mA
• 'ACT564 Has TTL Compatible Inputs
MC74ACT564 Connection Diagram
MC74ACT564
PDF/DataSheet Download
- Datasheet: MC74ACT564
- File Size: 96490 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
- ·MC705C8ACFNR2
- MOTOROLA [Motorola, Inc]
- M68HC05 MICROCONTROLLERS
- 2307881 KB
- ·MC705P6A
- 573603 KB
- ·MC72000
- FREESCALE [Freescale Semiconductor, Inc]
- Integrated Bluetooth Radio
- 1825306 KB
- ·MC73110
- ETC [ETC]
- Advanced 3-Phase Motor Control IC
- 1391680 KB
- ·MC74
- ONSEMI [ON Semiconductor]
- Serial Digital Temperature Sensor
- 125392 KB
- ·MC74005N
- ETC [ETC]
- 8-function calculator unit co-operating with LED display
- 153970 KB
- ·MC74007N
- ETC [ETC]
- 8-function calculator unit co-operating with LED display
- 153970 KB
- ·MC740-430E
- ETC [ETC]
- 47-Gb/s 4:1 Multiplexer
- 472487 KB
MC74ACT564 Relative Products
MC74ACT563DW
The MC74ACT563DW is a high-speed octal latch with buffered common latch enable and buffered common output enable inputs.It is functionally identical to it,but with inverted outputs. Features of the MC74ACT563DW are:(1)inputs and outputs on opppsite sides of...
MC74ACT563
The MC74AC563/74ACT563 is a high-speed octal latch with buffered common Latch Enable (LE) and buffered common Output Enable (OE) inputs.The MC74AC563/74ACT563 device is functionally identical to the MC74AC573/ 74ACT573, but with inverted outputs.

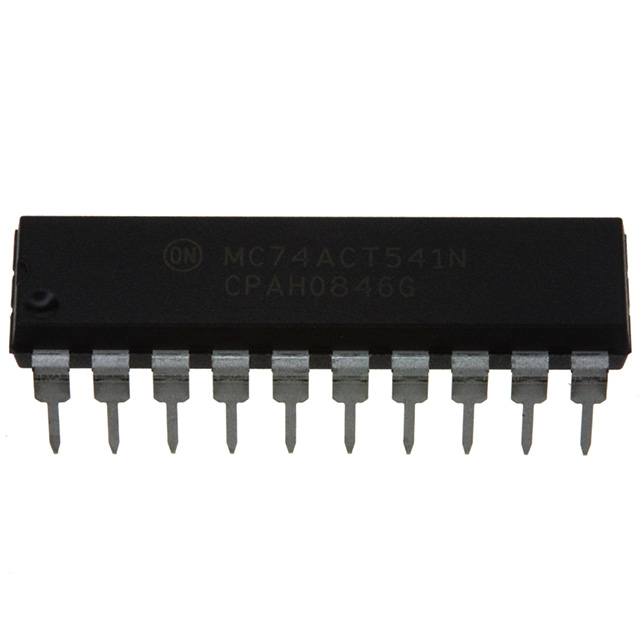

MC74ACT541NG
