Part Number: MC74ACT640



MFG: ON

Package Cooled: SOP20

D/C: 06+

Description: The MC74AC640/74ACT640 octal bus transceiver is designed for asynchronous two-way communication betwee...


Urgent Purchase

MC74ACT640 General Description


The MC74AC640/74ACT640 octal bus transceiver is designed for asynchronous two-way communication between data buses. The device transmits data from bus A to bus B when T/R = HIGH, or from bus B to bus A when T/R = LOW. The enable input can be used to disable the device so the buses are effectively isolated.

MC74ACT640 Maximum Ratings

Symbol
Parameter
Value
Unit
VCC
 DC Supply Voltage (Referenced to GND)
0.5 to +7.0
V
Vin
 DC Input Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Vout
 DC Output Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Iin
 DC Input Current, per Pin
±20
mA
Iout
 DC Output Sink/Source Current, per Pin
±50
mA
ICC
 DC VCC or GND Current per Output Pin
±50
mA
Tstg
 Storage Temperature
65 to +150
* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation
   should be restricted to the Recommended Operating Conditions.

MC74ACT640 Features

• Bidirectional Data Path
• A and B Outputs Sink 24 mA/Source 24 mA
• 'ACT640 Has TTL Compatible Inputs

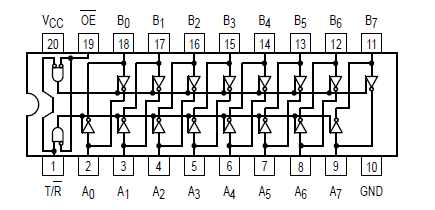

MC74ACT640 Connection Diagram

MC74ACT640 Connection Diagram
