Part Number: MC74AT533









Description: The MC74AC533/74ACT533 consists of eight latches with 3-state outputs for bus organized system applica...


Urgent Purchase

MC74AT533 General Description


The MC74AC533/74ACT533 consists of eight latches with 3-state outputs for bus organized system applications. The flip-flops appear transparent to the data when Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the setup time is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH, the bus output is in the high impedance state. The 4AC/ACT533 is the same as the 4AC/ACT373, except that the outputs are inverted. For description and logic diagram please see the 4AC/ACT373 data sheet.

MC74AT533 Maximum Ratings

Symbol
 Parameter
Value
Unit
VCC
 DC Supply Voltage (Referenced to GND)
0.5 to +7.0
V
Vin
 DC Input Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Vout
 DC Output Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Iin
 DC Input Current, per Pin
±20
mA
Iout
 DC Output Sink/Source Current, per Pin
±50
mA
ICC
 DC VCC or GND Current per Output Pin
±50
mA
Tstg
 Storage Temperature
65 to +150
°C

MC74AT533 Features

• Eight Latches in a Single Package
• 3-State Outputs for Bus Interfacing
• 4ACT533 Has TTL Compatible Inputs
• Inverted Output Version of 4ACT373

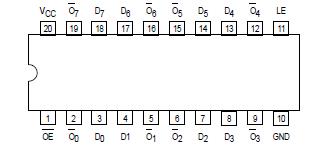

MC74AT533 Connection Diagram

MC74AT533 Connection Diagram
