Purchase MC74F1245, In-stock MC74F1245 From SeekIC.
Part Number: MC74F1245
Description: The MC74F1245 contains eight noninverting bidirectional buffers with 3-state output...
- Table of contents:
MC74F1245
-
Suppliers
DataSheet
General Description
MC74F1245 General Description
The MC74F1245 contains eight noninverting bidirectional buffers with 3-state outputs and is intended for buoriented applications. Current sinking capability is 24 mA at the A ports and 64 mA at the B ports. The Transmit/ Receive (T/R) input determines the direction of data flow through the bidirectional transceiver. Transmit (active HIGH) enables data from A ports to B ports; Receive (active LOW) enables data from B ports to A ports. The Output Enable input, when HIGH, disables both A and B ports by placing them in a high-Z condition.
MC74F1245 Features
*Noninverting Buffers
*Bidirectional Data Path
*B Outputs Sink 64 mA
*High Impedance Inputs for Reduced Loading
*Same Function and Pinout as the F245
*ESD Protection > 4000 Volts
*Bidirectional Data Path
*B Outputs Sink 64 mA
*High Impedance Inputs for Reduced Loading
*Same Function and Pinout as the F245
*ESD Protection > 4000 Volts

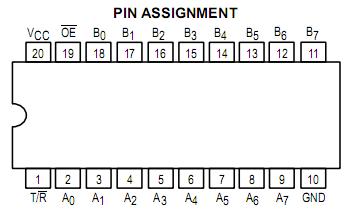

MC74F1245 Connection Diagram
MC74F1245
PDF/DataSheet Download
- Datasheet: MC74F1245
- File Size: 46794 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
