Part Number: MC74F1803









Description: The MC74F1803 is a highspeed, lowpower, quad Dtype flipflop featuring separate Dtype inputs and inverting outputs with ...


Urgent Purchase

MC74F1803 General Description


The MC74F1803 is a highspeed, lowpower, quad Dtype flipflop featuring separate Dtype inputs and inverting outputs with closely matched propagation delays. With a buffered clock (CP) input that is common to all
flipflops, the MC74F1803 is useful in highfrequency systems as a clock driver, providing multiple outputs that are synchronous. Because of the matched propagation delays, the duty cycles of the output waveforms in a clock driver application are symmetrical within 2.0 nanoseconds.

MC74F1803 Features

• EdgeTriggered DType Inputs
• Buffered Positive EdgeTriggered Clock
• Matched Outputs for Synchronous Clock Driver Applications
• Outputs Guaranteed for Simultaneous Switching

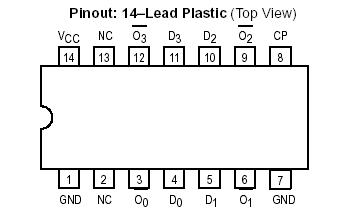

MC74F1803 Connection Diagram

MC74F1803 Connection Diagram

MC74F1803 datasheet

MC74F1803
PDF/DataSheet Download
