Part Number: MC74F538DW
Description: The MC54/74F538 decoder/demultiplexer accepts three Address (A 0A 2) input signals and decodes th...
- Table of contents:
MC74F538DW
-
Suppliers
DataSheet
General Description
MC74F538DW General Description
The MC54/74F538 decoder/demultiplexer accepts three Address (A 0A 2) input signals and decodes them to select one of eight mutually exclusive outputs. A polarity control input (P) determines whether the outputs are active LOW or active HIGH. A HIGH Signal on either of the active LOW Output Enable (OE ) inputs forces all outputs to the high impedance state. Two active HIGH and two active LOW input enables are available for easy expansion to 1-of-32 decoding with four packages, or for data demultiplexing to 1-of-8 or 1-of-16 destinations.
MC74F538DW Maximum Ratings
| Symbol | Parameter | Typ | Max | Min | Unit | |
| VCC | Supply Voltage | 54, 74 | 4.5 | 5.0 | 5.5 | V |
| TA | Operating Ambient Temperature Range | 54 | -55 | 25 | 125 | °C |
| 74 | 0 | 25 | 70 | |||
| IOH | Output Current- High | 54, 74 | -3.0 | mA | ||
| IOL | Output Current- Low | 54, 74 | 24 | mA | ||

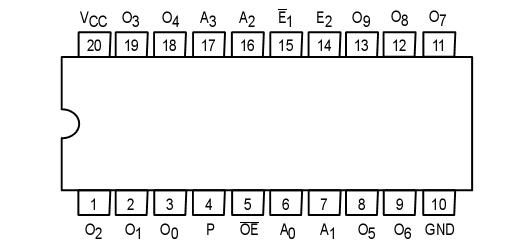

MC74F538DW Connection Diagram
