MC74HC14A
-
Suppliers
DataSheet
General Description
MC74HC14A Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
DC Supply Voltage (Referenced to GND) |
0.5 to + 7.0 |
V |
|
Vin |
DC Input Voltage (Referenced to GND) |
0.5 to VCC + 0.5 |
V |
|
Vout |
DC Output Voltage (Referenced to GND) |
0.5 to VCC + 0.5 |
V |
|
Iin |
DC Input Current, per Pin |
±20 |
mA |
|
Iout |
DC Output Current, per Pin |
±35 |
mA |
|
ICC |
DC Supply Current, VCC and GND Pins |
±75 |
mA |
|
PD |
Power Dissipation in Still Air, Plastic DIP+
SOIC Package+
TSSOP Package+ |
750
500
450 |
mW |
|
Tstg |
Storage Temperature |
65 to + 150 |
|
|
TL |
Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP, SOIC, SSOP or TSSOP Package) |
260 |
MC74HC14A Features
Output Drive Capability: 10 LSTTL Loads
Outputs Directly Interface to CMOS, NMOS and TTL
Operating Voltage Range: 2 to 6V
Low Input Current: 1A
High Noise Immunity Characteristic of CMOS Devices
In Compliance With the JEDEC Standard No. 7A Requirements
Chip Complexity: 60 FETs or 15 Equivalent Gates
Outputs Directly Interface to CMOS, NMOS and TTL
Operating Voltage Range: 2 to 6V
Low Input Current: 1A
High Noise Immunity Characteristic of CMOS Devices
In Compliance With the JEDEC Standard No. 7A Requirements
Chip Complexity: 60 FETs or 15 Equivalent Gates

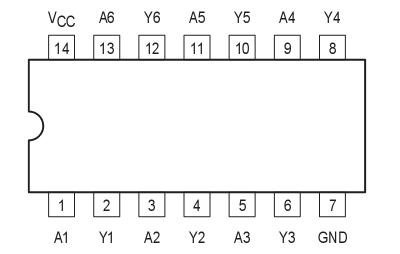

MC74HC14A Connection Diagram
MC74HC14A
PDF/DataSheet Download
