MC74HC165AD

Counter Type :
Output Type :
Package / Case : SOIC-16
Number of Circuits : 1
Maximum Operating Temperature : + 125 C
Minimum Operating Temperature : - 55 C
Logic Family : 74HC
Counting Sequence : Serial/Parallel to Serial
Logic Type : CMOS
Number of Input Lines : 9
Packaging : Tube
Propagation Delay Time : 150 ns, 52 ns, 30 ns, 26 ns

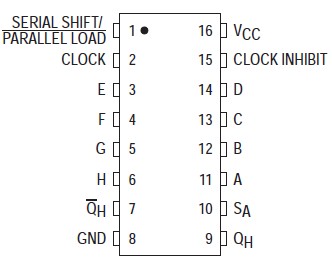

Pinout




Specifications

SymbolL	Parameter	Value	Unit
VCC	DC Supply Voltage (Referenced to GND)	0.5 to + 7.0	V
Vin	DC Input Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
Vout	DC Output Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
Iin	DC Input Current, per Pin	± 20	mA
Iout	DC Output Current, per Pin	± 25	mA
ICC	DC Supply Current, VCC and GND Pins	± 50	mA
PD	Power Dissipation in Still Air, Plastic or Ceramic DIP†                                                           SOIC Package†                                                         TSSOP Package†	750 500 450	mW
Tstg	Storage Temperature	65 to + 150
TL	Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package)	260

Parameters:

Technical/Catalog Information	MC74HC165AD
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Logic Type	Shift Register
Function	Parallel or Serial to Serial
Number of Elements	1 - Single
Number of Bits per Element	8
Output Type	Differential
Voltage - Supply	2 V ~ 6 V
Mounting Type	Surface Mount
Package / Case	16-SOIC
Packaging	Tube
Operating Temperature	-55°C ~ 125°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MC74HC165AD MC74HC165AD
