Five Points

Part Number: MC74HC1G04









Description: The MC74HC1G04 is a high speed CMOS inverter fabricated with silicon gate CMOS technology.The internal circuit ...


Urgent Purchase

MC74HC1G04 General Description


The MC74HC1G04 is a high speed CMOS inverter fabricated with silicon gate CMOS technology.

The internal circuit is composed of multiple stages, including a buffer output which provides high noise immunity and stable output.

The MC74HC1G04 output drive current is 1/2 compared to MC74HC series.

MC74HC1G04 Maximum Ratings

Symbol Parameter Value Unit
VCC DC Supply Voltage 0.5 to + 7.0 V
VIN DC Input Voltage 0.5 to VCC +0.5 V
VOUT DC Output Voltage 0.5 to VCC +0.5 V
IIK Input Diode Current ± 20 mA
IOK Output Diode Current VOUT < GND;VOUT > VCC ± 20 mA
IOUT DC Output Current, per Pin ± 12.5 mA
ICC DC Supply Current, VCC and GND ± 25 mA
Tstg Storage temperature 65 to +150 °C
TL Lead Temperature, 1 mm from Case for 10 s 260 °C
TJ Junction Temperature Under Bias + 150 °C
JA Thermal Resistance SC705/SC88A/SOT353 (Note 1)
SOT235/TSOP5/SC595		 350
230		 °C/W
PD Power Dissipation in Still Air at 85C SC705/SC88A/SOT353
SOT235/TSOP5/SC595		 150
200		 mW
MSL
 Moisture Sensitivity Level 1
FR Flammability Rating Oxygen Index: 28 to 34 UL 94 V0 @ 0.125 in
VESD ESD Withstand Voltage Human Body Model (Note 2)
Machine Model (Note 3)
Charged Device Model (Note 4) 		>2000
> 200
N/A		 V
ILATCHUP LatchUp Performance Above VCC and Below GND at 125°C (Note 5) ± 500 mA
1. Maximum Ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolutemaximumrated conditions is not implied. Functional operation should be restricted to the Recommended Operating Conditions.
2. Tested to EIA/JESD22A114A
3. Tested to EIA/JESD22A115A
4. Tested to JESD22C101A
5. Tested to EIA/JESD78

MC74HC1G04 Features

• High Speed: tPD = 7 ns (Typ) at VCC = 5 V
• Low Power Dissipation: ICC = 1 A (Max) at TA = 25
• High Noise Immunity
• Balanced Propagation Delays (tpLH = tpHL)
• Symmetrical Output Impedance (IOH = IOL = 2 mA)
• Chip Complexity: FET = 105
• Pb−Free Packages are Available

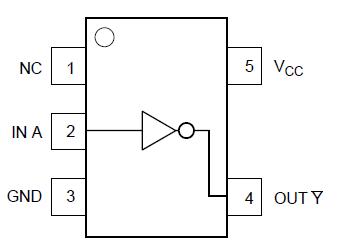

MC74HC1G04 Connection Diagram

MC74HC1G04 Connection Diagram
