MC74HC1G14DFT2

Inverters 2-6V Single CMOS

product image

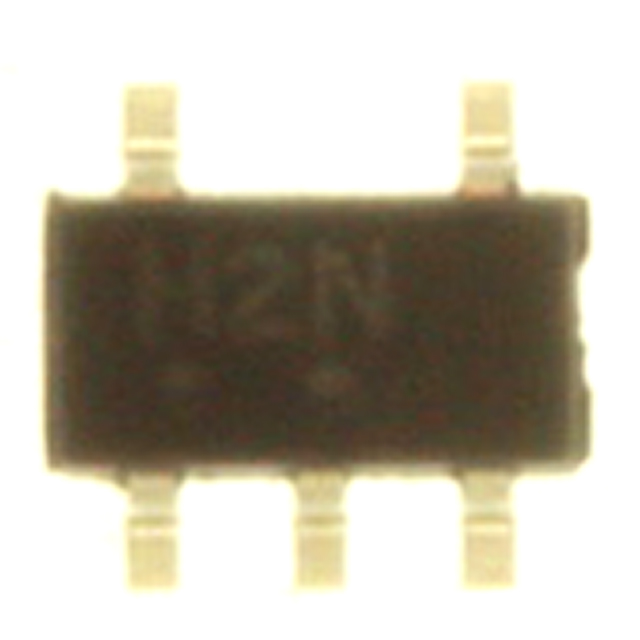

MC74HC1G14DFT2 Picture
See larger image
SeekIC No. : 00443926 Detail

MC74HC1G14DFT2: Inverters 2-6V Single CMOS

MC74HC1G14DFT2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74HC1G14DFT2
Mfg:
ON Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Circuits : 1 Logic Family : 74HC
Logic Type : CMOS High Level Output Current : - 2.6 mA
Low Level Output Current : 2.6 mA Propagation Delay Time : 100 ns, 27 ns, 20 ns, 17 ns
Supply Voltage - Max : 6 V Supply Voltage - Min : 2 V
Maximum Operating Temperature : + 125 C Package / Case : SC-70-5
Packaging : Reel

Description

Minimum Operating Temperature :
Operating Temperature Range :
Maximum Operating Temperature : + 125 C
Packaging : Reel
Logic Type : CMOS
Logic Family : 74HC
Number of Circuits : 1
Package / Case : SC-70-5
High Level Output Current : - 2.6 mA
Low Level Output Current : 2.6 mA
Supply Voltage - Max : 6 V
Supply Voltage - Min : 2 V
Propagation Delay Time : 100 ns, 27 ns, 20 ns, 17 ns


Parameters:

Technical/Catalog InformationMC74HC1G14DFT2
VendorON Semiconductor
CategoryIntegrated Circuits (ICs)
Number of Circuits1 - Single
Package / CaseSC-70-5, SC-88A, SOT-323-5, SOT-353, 5-TSSOP
Logic TypeInverter
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Inputs1
Current - Output High, Low2.6mA, 2.6mA
Supply Voltage2 V ~ 6 V
Operating Temperature-55°C ~ 125°C
Voltage - Supply2 V ~ 6 V
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names MC74HC1G14DFT2
