MC74HC273AN

Number of Circuits : 1
Maximum Operating Temperature : + 125 C
Logic Type : CMOS
Polarity : Non-Inverting
Input Type : Single-Ended
Output Type : Single-Ended
Mounting Style : Through Hole
Package / Case : PDIP-20
Packaging : Tube
High Level Output Current : - 7.8 mA
Low Level Output Current : 7.8 mA
Supply Voltage - Max : 6 V
Logic Family : HC
Propagation Delay Time : 145 ns

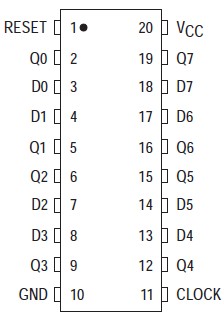

Pinout




Specifications

SymbolL	Parameter	Value	Unit
VCC	DC Supply Voltage (Referenced to GND)	0.5 to + 7.0	V
Vin	DC Input Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
Vout	DC Output Voltage (Referenced to GND)	0.5 to VCC + 0.5
Iin	DC Input Current, per Pin	± 20	mA
Iout	DC Output Current, per Pin	± 25	mA
ICC	DC Supply Current, VCC and GND Pins	± 50	mA
PD	Power Dissipation in Still Air, Plastic or Ceramic DIP†                                                          SOIC Package†                                                        TSSOP Package†	750 500 450	mW
Tstg	Storage Temperature	65 to + 150
TL	Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package)	260

Parameters:

Technical/Catalog Information	MC74HC273AN
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Mounting Type	Through Hole
Package / Case	20-DIP
Function	Reset
Number of Bits per Element	8
Number of Elements	1 - Single
Current - Output High, Low	7.8mA, 7.8mA
Output Type	Non-Inverted
Trigger Type	Positive Edge
Type	D-Type Bus
Packaging	Tube
Operating Temperature	-55°C ~ 125°C
Delay Time - Propagation	25ns
Frequency - Clock	35MHz
Voltage - Supply	2 V ~ 6 V
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MC74HC273AN MC74HC273AN MC74HC273ANOS ND MC74HC273ANOSND MC74HC273ANOS
