Part Number: MC74HC299





Package Cooled: PLCC





Urgent Purchase

MC74HC299 Maximum Ratings

Symbol
Parameter
Value
Unit
VCC DC Supply Voltage(Referenced to GND)
0.5 to +7.0
V
Vin DC Input Voltage(Referenced to GND)
1.5 to VCC + 1.5
V
Vout DC Output Voltage(Referenced to GND)
0.5 to VCC + 0.5
V
Iin DC Input Current,per Pin
±20
mA
Iout DC Output Current,per Pin
±35
mA
ICC DC Supply Current,VCC and GND Pins
±75
mA
PD Power Dissipation in Still Air,Plastic DIP
SOIC Package
750
500
mW
Tstg Storage Temperature
65 to +150
°C
TL Lead Temperature,1mm from Case for 10 Seconds
(Plastic DIP or SOIC Package)
260
°C

MC74HC299 Features

• Output Drive Capability: 15 LSTTL Loads for QA through QH
                                          10 LSTTL Loads for QA' and QH'
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 2 to 6 V
• Low Input Current: 1 A
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 398 FETs or 99.5 Equivalent Gates

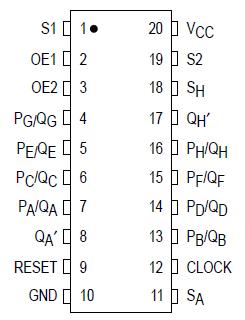

MC74HC299 Connection Diagram

MC74HC299 Connection Diagram

MC74HC299 datasheet

MC74HC299
PDF/DataSheet Download

Find MC74HC299 Suppliers

  • ·MC705C8ACFNR2
  • MOTOROLA [Motorola, Inc]
  • M68HC05 MICROCONTROLLERS
  • 2307881 KB
  • MC705C8ACFNR2 Datasheet Download
  • ·MC705P6A
  •
  •
  • 573603 KB
  • MC705P6A Datasheet Download
  • ·MC72000
  • FREESCALE [Freescale Semiconductor, Inc]
  • Integrated Bluetooth Radio
  • 1825306 KB
  • MC72000 Datasheet Download
  • ·MC73110
  • ETC [ETC]
  • Advanced 3-Phase Motor Control IC
  • 1391680 KB
  • MC73110 Datasheet Download
  • ·MC74
  • ONSEMI [ON Semiconductor]
  • Serial Digital Temperature Sensor
  • 125392 KB
  • MC74 Datasheet Download
  • ·MC74005N
  • ETC [ETC]
  • 8-function calculator unit co-operating with LED display
  • 153970 KB
  • MC74005N Datasheet Download
  • ·MC74007N
  • ETC [ETC]
  • 8-function calculator unit co-operating with LED display
  • 153970 KB
  • MC74007N Datasheet Download
  • ·MC740-430E
  • ETC [ETC]
  • 47-Gb/s 4:1 Multiplexer
  • 472487 KB
  • MC740-430E Datasheet Download

Related Part Number

MC74HC299 Relative Products

  • MC74HC280

    MC74HC280

    The MC74HC280 is identical in pinout to the LS280. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.This circuit MC74HC280 consists of 9 databit inputs (A through I) and 2 outputs (Eve...

  • MC74HC27A

    MC74HC27A

  • MC74HC273ANG

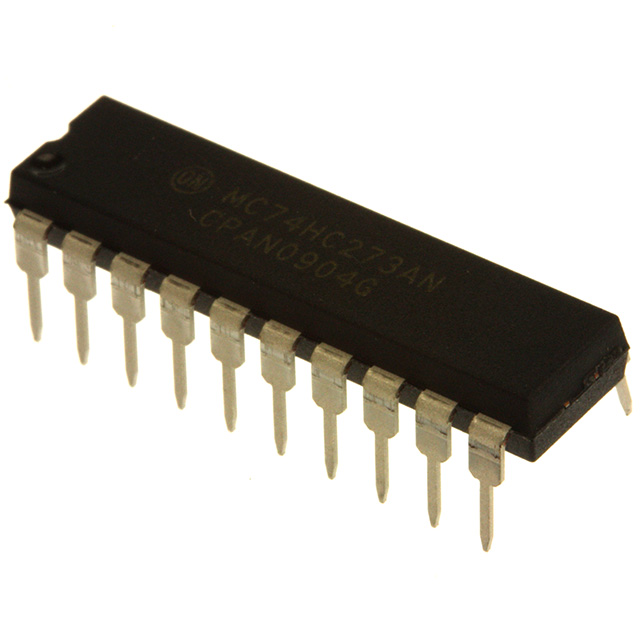

    MC74HC273ANG
