MC74HC32A General Description


The MC74HC32A is identical in pinout to the LS32. The device inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.

MC74HC32A Maximum Ratings

Symbol Parameter Value Unit
VCC DC Supply Voltage 0.5 to + 7.0 v
Vin DC Input Voltage 0.5 to + 7.0 V
Vout DC Output Voltage 0.5 to VCC + 0.5 v
Iin DC Input Current ,per Pin 20 mA
Iout DC Output Current, per Pin ± 25 mA
Icc DC Supply Current, VCC and GND Pins ±50 mA
PD Power Dissipation in Still Air,Plastic DIP


SOIC Package


TSSOP Package

750

500

450

mw
Tstg Storage Temperature 65 to + 150
TL Lead Temperature,1 mm from Case for 10 seconds Plastic DIP,SOIC or Tssop Package 260

MC74HC32A Features

• Output Drive Capability: 10 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 2 to 6V
• Low Input Current: 1A
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance With the JEDEC Standard No. 7A Requirements
• Chip Complexity: 48 FETs or 12 Equivalent Gates

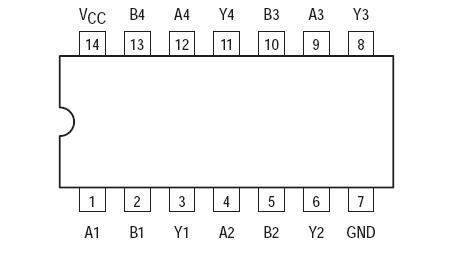

MC74HC32A Connection Diagram

MC74HC32A Connection Diagram

MC74HC32A datasheet

MC74HC32A
PDF/DataSheet Download
