Part Number: MC74HC4514
Description: The MC74HC4514 is identical in pinout to the MC14514B metalgate CMOS device. The device inputs are com...
- Table of contents:
MC74HC4514
-
Suppliers
DataSheet
General Description
MC74HC4514 General Description
The MC74HC4514 is identical in pinout to the MC14514B metalgate CMOS device. The device inputs are compatible with standard CMOS outputs, with pullup resistors; they are compatible with LSTTL outputs. This device consists of a 4bit storage latch with a Latch Enable and Chip Select input. When a low signal is applied to the Latch Enable input, the Address is stored, and decoded. When the Chip Select input is high, all sixteen outputs are forced to a low level.
The Chip Select input is provided to facilitate the chipselect, demultiplexing, and cascading functions.
The demultiplexing function is accomplished by using the Address inputs to select the desired device output, and then by using the Chip Select as a data input.
MC74HC4514 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| vcc | DC Supply Voltage (Referenced to GND) | 0.5 to +7.0 | V |
| VIN | DC Input Voltage (Referenced to GND) | 0.5 to VCC + 0.5 | V |
| VOUT | DC Output Voltage (Referenced to GND) | 0.5 to VCC + 0.5 | V |
| LIN | DC Input Current, per Pin | ±20 | mA |
| IOUT | DC Onput Current, per Pin | ±35 | mA |
| ICC | DC Supply Current Per Supply Pin | ±75 | mA |
| PD | Power dissipation in still air piastic DIP SOIC package |
750 500 |
mW |
| TSTG | Storage Temperature | 65 to +150 | °C |
| TL | Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package) |
260 |
°C |
Functional operation should be restricted to the Recommended Operating Conditions.
†Derating - Plastic DIP: 10 mW/C from 65 to 125C
Ceramic DIP: 10 mW/C from 100 to 125C
SOIC Package: 7 mW/C from 65 to 125C
For high frequency or heavy load considerations, see Chapter 2 of the Motorola HighSpeed CMOS Data Book (DL129/D).
MC74HC4514 Features
• Output Drive Capability: 10 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 2 to 6 V
• Low Input Current: 1 mA
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 268 FETs or 67 Equivalent Gates
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 2 to 6 V
• Low Input Current: 1 mA
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 268 FETs or 67 Equivalent Gates

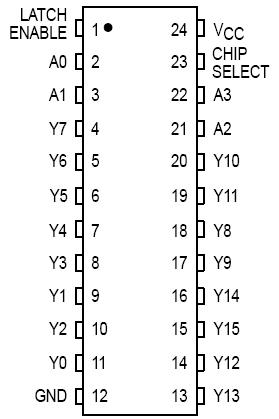

MC74HC4514 Connection Diagram
MC74HC4514
