Part Number: MC74HC541ADWR2



MFG: ON

Package Cooled: SOIC-20 WB

D/C: 07+

Description: The MC74HC541A is identical in pinout to the LS541. The device inputs are compatible with Standard CMOS outputs. Extern...


Urgent Purchase

MC74HC541ADWR2 General Description


The MC74HC541A is identical in pinout to the LS541. The device inputs are compatible with Standard CMOS outputs. External pullup resistors make them compatible with LSTTL outputs.
The HC541A is an octal noninverting buffer/line driver/line receiver designed to be used with 3state memory address drivers, clock drivers, and other busoriented systems. This device features inputs and outputs on opposite sides of the package and two ANDed activelow output enables.
The HC541A is similar in function to the HC540A, which has inverting outputs.

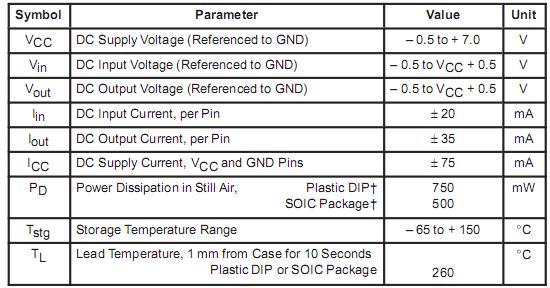

MC74HC541ADWR2 Maximum Ratings

Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.Derating - Plastic DIP: 10 mW/C from 65 to 125C SOIC Package: 7 mW/C from 65 to 125C
For high frequency or heavy load considerations, see Chapter 2 of the ON Semiconductor HighSpeed CMOS Data Book (DL129/D).

MC74HC541ADWR2 Features

• Output Drive Capability: 15 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 2 to 6V
• Low Input Current: 1µA
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance With the JEDEC Standard No. 7A Requirements
• Chip Complexity: 134 FETs or 33.5 Equivalent Gates

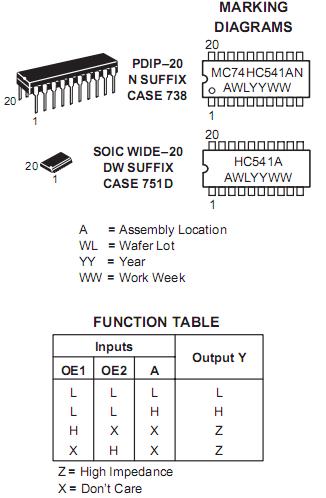

MC74HC541ADWR2 Connection Diagram

MC74HC541ADWR2 Connection Diagram
