MC74HC564
-
Suppliers
DataSheet
General Description
MC74HC564 Maximum Ratings
| SymbolL | Parameter | Value | Unit |
| VCC | DC Supply Voltage (Referenced to GND) | 0.5 to + 7.0 | V |
| Vin | DC Input Voltage (Referenced to GND) | 0.5 to VCC + 0.5 | V |
| Vout | DC Output Voltage (Referenced to GND) | 0.5 to VCC + 0.5 | V |
| Iin | DC Input Current, per Pin | ± 20 | mA |
| Iout | DC Output Current, per Pin | ± 35 | mA |
| ICC | DC Supply Current, VCC and GND Pins | ±75 | mA |
| PD | Power Dissipation in Still Air, Plastic or Ceramic DIP† SOIC Package† |
750 500 |
mW |
| Tstg | Storage Temperature | 65 to + 150 | C |
| TL | Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package) |
260 |
C |

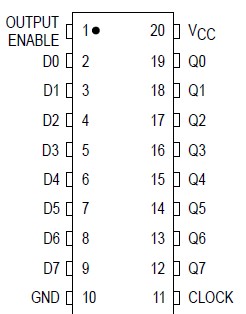

MC74HC564 Connection Diagram
MC74HC564
