Purchase MC74HC573AN, In-stock MC74HC573AN From SeekIC.
MFG:MOT D/C:DIP
Part Number: MC74HC573AN
MFG: MOT
D/C: DIP
Description: The MC74HC573A is identical in pinout to the LS573. The devices are compatible with standard CMOS outp...
- Table of contents:
MC74HC573AN
-
Suppliers
DataSheet
General Description
MC74HC573AN General Description
The MC74HC573A is identical in pinout to the LS573. The devices are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.
These latches appear transparent to data (i.e., the outputs change asynchronously) when Latch Enable is high. When Latch Enable goes low, data meeting the setup and hold time becomes latched.
The HC573A is identical in function to the HC373A but has the data inputs on the opposite side of the package from the outputs to facilitate PC board layout.
MC74HC573AN Maximum Ratings
| Symbol | Parameter | Value | Unit |
| vcc | DC Supply Voltage (Referenced to GND) | 0.5 to +7.0 | V |
| VIN | DC Input Voltage (Referenced to GND) | 0.5 to VCC + 0.5 | V |
| VOUT | DC Output Voltage (Referenced to GND) | 0.5 to VCC + 0.5 | V |
| LIN | DC Input Current, per Pin | ±20 | mA |
| IOUT | DC Onput Current, per Pin | ±35 | mA |
| ICC | DC Supply Current Per Supply Pin | ±75 | mA |
| PD | Power dissipation in still air piastic DIP SOIC package |
750 500 |
mW |
| TSTG | Storage Temperature | 65 to +150 | °C |
| TL | Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package) |
260 | °C |
* Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
†Derating - Plastic DIP: 10 mW/C from 65 to 125C
Ceramic DIP: 10 mW/C from 100 to 125C
SOIC Package: 7 mW/C from 65 to 125C
For high frequency or heavy load considerations, see Chapter 2 of the Motorola HighSpeed CMOS Data Book (DL129/D).
MC74HC573AN Features
• Output Drive Capability: 15 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 2.0 to 6.0 V
• Low Input Current: 1.0 mA
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 218 FETs or 54.5 Equivalent Gates
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 2.0 to 6.0 V
• Low Input Current: 1.0 mA
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 218 FETs or 54.5 Equivalent Gates

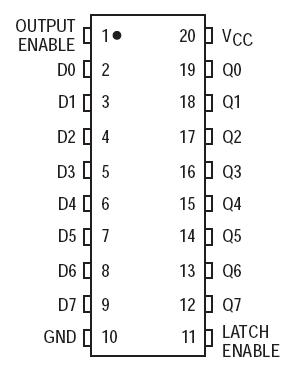

MC74HC573AN Connection Diagram
MC705C8ACFNR2
PDF/DataSheet Download
- Datasheet: MC705C8ACFNR2
- File Size: 2307881 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
- ·MC705P6A
- 573603 KB
- ·MC72000
- FREESCALE [Freescale Semiconductor, Inc]
- Integrated Bluetooth Radio
- 1825306 KB
- ·MC73110
- ETC [ETC]
- Advanced 3-Phase Motor Control IC
- 1391680 KB
- ·MC74
- ONSEMI [ON Semiconductor]
- Serial Digital Temperature Sensor
- 125392 KB
- ·MC74005N
- ETC [ETC]
- 8-function calculator unit co-operating with LED display
- 153970 KB
- ·MC74007N
- ETC [ETC]
- 8-function calculator unit co-operating with LED display
- 153970 KB
- ·MC740-430E
- ETC [ETC]
- 47-Gb/s 4:1 Multiplexer
- 472487 KB
- ·MC7410VU400NE
- FREESCALE [Freescale Semiconductor, Inc]
- MPC7410 RISC Microprocessor Hardware Specifications Addendum
- 478231 KB
MC74HC573AN Relative Products

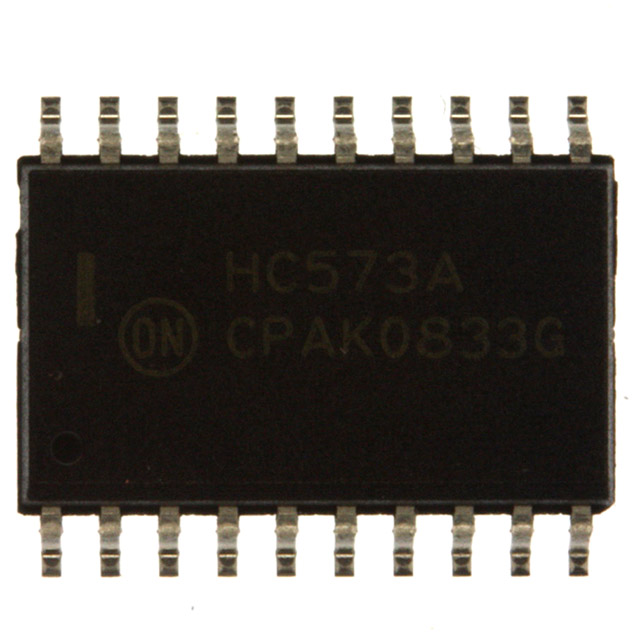

MC74HC573ADWR2G
