MFG:ON Package Cooled:PDIP-16 D/C:07+
MFG: ON
Package Cooled: PDIP-16
D/C: 07+

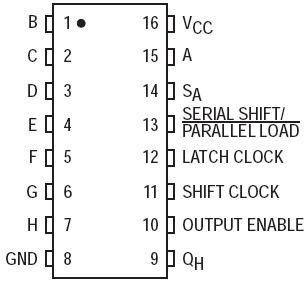

Description: The MC74HC589A device consists of an 8bit storage latch which feeds parallel data to an 8bit shift reg...
The MC74HC589A device consists of an 8bit storage latch which feeds parallel data to an 8bit shift register. Data can also be loaded serially (see Function Table). The shift register output, QH, is a threestate output, allowing this device to be used in busoriented systems.
The HC589A directly interfaces with the SPI serial data port on CMOS MPUs and MCUs.
| Symbol | Parameter | Value | Unit |
| vcc | DC Supply Voltage (Referenced to GND) | 0.5 to +7.0 | V |
| VIN | DC Input Voltage (Referenced to GND) | 0.5 to VCC + 0.5 | V |
| VOUT | DC Output Voltage (Referenced to GND) | 0.5 to VCC + 0.5 | V |
| LIN | DC Input Current, per Pin | ±20 | mA |
| IOUT | DC Onput Current, per Pin | ±35 | mA |
| ICC | DC Supply Current Per Supply Pin | ±75 | mA |
| PD | Power dissipation in still air piastic DIP SOIC package |
750 500 |
mW |
| TSTG | Storage Temperature | 65 to +150 | °C |
| TL | Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package) |
260 | °C |
MC74HC589AN
PDF/DataSheet Download

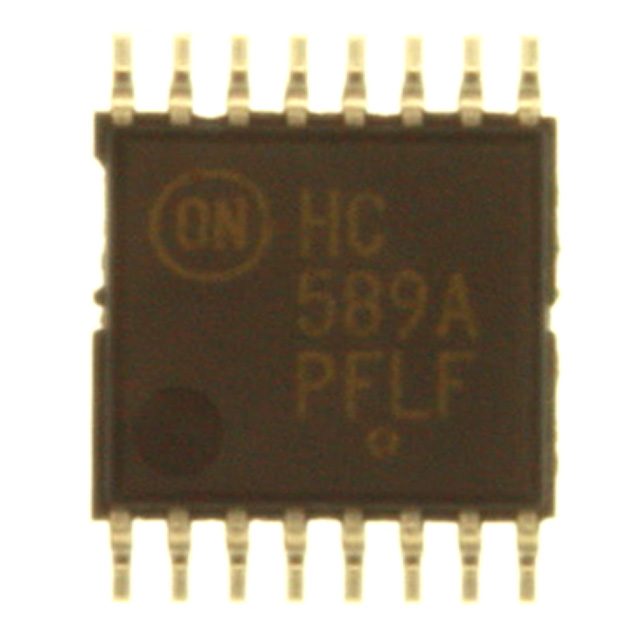

IC SHIFT REGISTER 8BIT 16-TSSOP
IC SHIFT REGISTR 8BIT 3ST 16SOIC
IC SHIFT REGISTR 8BIT 3ST 16SOIC
The MC54/74HC589A is similar in function to the HC597, which is not a 3state device. The device inputs are compatible with standard CMOS outputs, with pullup resistors, they are compatible with LSTTL outputs. MC74HC589A consists of an 8bit storage latch whi...
The MC74HC58 is identical to the MC74HC51 except that the outputs are inverted. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.
