MFG:ON Semiconductor Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: ON Semiconductor

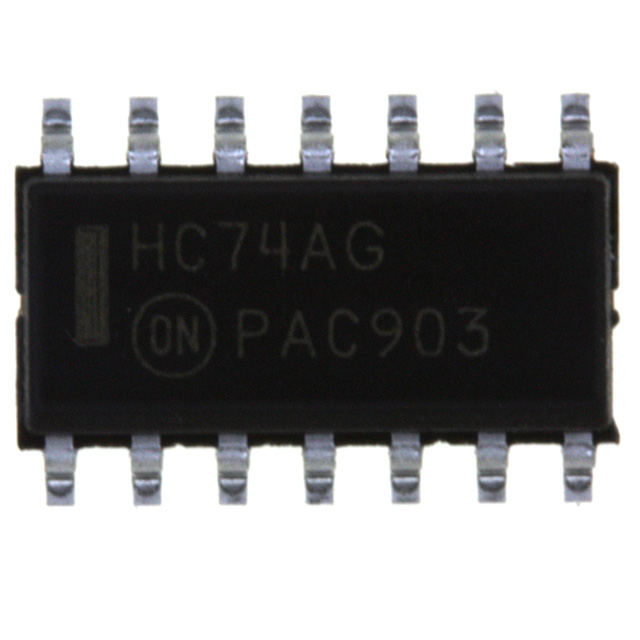

Descriptions: IC FLIP FLOP DUAL SET/RST 14SOIC
2500
.19500
487.50
| Technical/Catalog Information | MC74HC74ADR2 |
| Vendor | ON Semiconductor |
| Category | Integrated Circuits (ICs) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC |
| Function | Set and Reset |
| Number of Bits per Element | 1 |
| Number of Elements | 2 - Dual |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Output Type | Differential |
| Trigger Type | Positive Edge |
| Type | D-Type |
| Packaging | Tape & Reel (TR) |
| Operating Temperature | -55°C ~ 125°C |
| Delay Time - Propagation | 17ns |
| Frequency - Clock | 35MHz |
| Voltage - Supply | 2 V ~ 6 V |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | MC74HC74ADR2 MC74HC74ADR2 MC74HC74ADR2OSTR ND MC74HC74ADR2OSTRND MC74HC74ADR2OSTR |
MC705C8ACFNR2
PDF/DataSheet Download
IC FLIP FLOP DUAL D S/R 14-SOIC
IC FLIP FLOP DUAL D S/R 14-SOIC
The MC74HC74A is identical in pinout to the LS74. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.MC74HC74A consists of two D flipflops with individual Set, Reset, and Clock inputs. I...
The MC74HC73 is identical in pinout to the LS73. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.Each flip flop is negativeedge clocked and has an activelow asynchronous reset.The MC7...
The MC74HC7266 is identical in pinout to the LS266 and the HC266. The HC7266 has standard CMOS outputs instead of opendrain outputs.MC74HC7266 inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.
