MFG:ON Semiconductor Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: ON Semiconductor

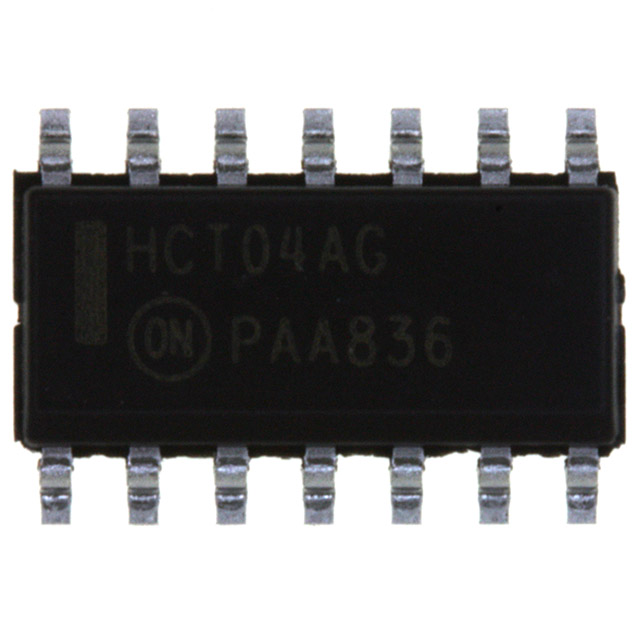

Descriptions: IC INVERTR HEX LSTTL CMOS 14SOIC
2500
.18000
450.00
| Technical/Catalog Information | MC74HCT04ADR2 |
| Vendor | ON Semiconductor |
| Category | Integrated Circuits (ICs) |
| Number of Circuits | 6 - Hex |
| Package / Case | 14-SOIC (3.9mm Width), 14-SOL |
| Logic Type | Inverter |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Number of Inputs | 1 |
| Current - Output High, Low | 4mA, 4mA |
| Supply Voltage | 4.5 V ~ 5.5 V |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | MC74HCT04ADR2 MC74HCT04ADR2 MC74HCT04ADR2OSTR ND MC74HCT04ADR2OSTRND MC74HCT04ADR2OSTR |
MC705C8ACFNR2
PDF/DataSheet Download
IC INVERTER HEX LSTTL IN 14-SOIC
IC INVERTER HEX LSTTL IN 14-SOIC
The MC74HCT04A may be used as a level converter for interfacing TTL or NMOS outputs to HighSpeed CMOS inputs.The HCT04A is identical in pinout to the LS04.
