MFG:ON Semiconductor (VA) Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: ON Semiconductor (VA)

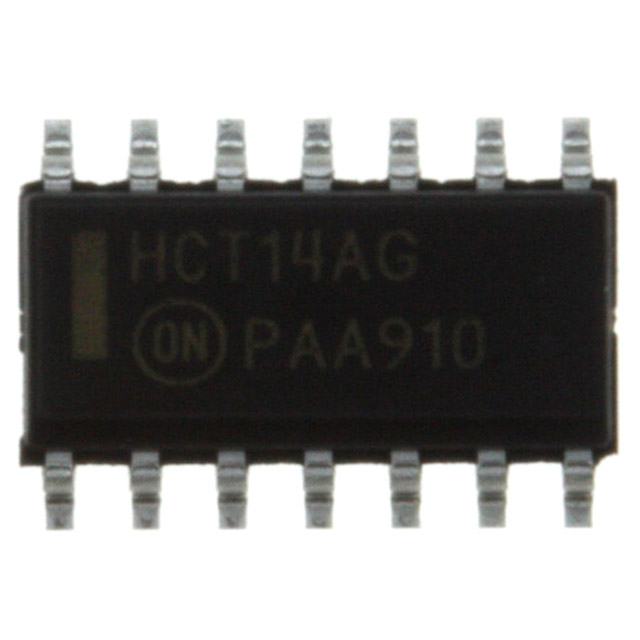

Descriptions: IC INVERTER HEX SCHMITT 14SOIC
| Technical/Catalog Information | MC74HCT14ADR2 |
| Vendor | ON Semiconductor (VA) |
| Category | Integrated Circuits (ICs) |
| Number of Circuits | 6 - Hex |
| Package / Case | 14-SOIC (3.9mm Width), 14-SOL |
| Logic Type | Inverter with Schmitt Trigger |
| Packaging | Cut Tape (CT) |
| Mounting Type | Surface Mount |
| Number of Inputs | 1 |
| Current - Output High, Low | 4mA, 4mA |
| Supply Voltage | 4.5 V ~ 5.5 V |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | MC74HCT14ADR2 MC74HCT14ADR2 MC74HCT14ADR2OSCT ND MC74HCT14ADR2OSCTND MC74HCT14ADR2OSCT |
MC74HCT14ADR2
PDF/DataSheet Download
IC INVERT HEX SCHM TRIG 14-SOIC
