MFG:ON Semiconductor Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: ON Semiconductor
Descriptions: IC BUFFER/DRV/RCV OCT 3ST 20SOIC
2000
.31752
635.04
| Technical/Catalog Information | MC74HCT244ADWR2 |
| Vendor | ON Semiconductor |
| Category | Integrated Circuits (ICs) |
| Logic Type | Line Driver, Non-Inverting |
| Package / Case | 20-SOIC |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 4 |
| Number of Elements | 2 - Dual |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Current - Output High, Low | 6mA, 6mA |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | MC74HCT244ADWR2 MC74HCT244ADWR2 MC74HCT244ADWOSTR ND MC74HCT244ADWOSTRND MC74HCT244ADWOSTR |
MC705C8ACFNR2
PDF/DataSheet Download

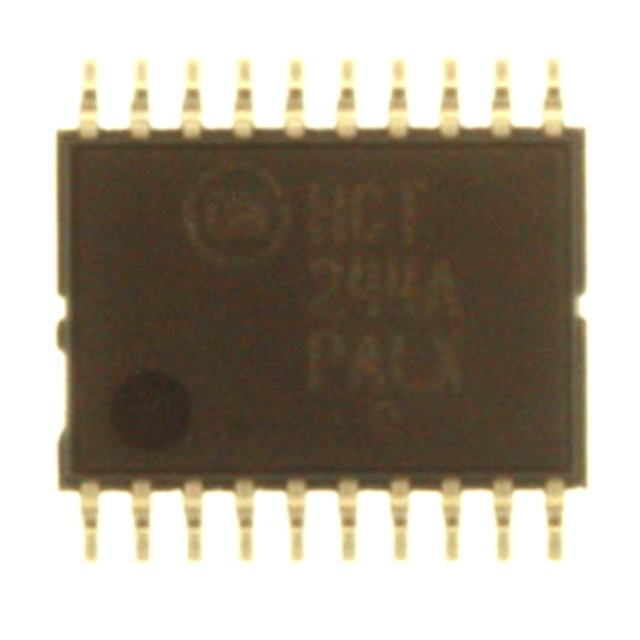

IC BUF/DR/RCR TRI-ST OCT 20TSSOP
The MC54/74HCT244A is identical in pinout to the LS244. This device may be used as a level converter for interfacing TTL or NMOS outputs to HighSpeed CMOS inputs. The HCT244A is an octal noninverting buffer line driver line receiver designed to be used with ...
