Part Number: MC74HCT244AN



MFG: ON

Package Cooled: 20 LEAD PDIP

D/C: 07+

Description: The MC74HCT244A is identical in pinout to the LS244. This device may be used as a level converter for ...


Urgent Purchase

MC74HCT244AN General Description


The MC74HCT244A is identical in pinout to the LS244. This device may be used as a level converter for interfacing TTL or NMOS outputs to HighSpeed CMOS inputs. The HCT244A is an octal noninverting buffer line driver line receiver designed to be used with 3state memory address drivers, clock drivers, and other busoriented systems. The device has noninverted outputs and two activelow output enables.

The HCT244A is the noninverting version of the HCT240. See also HCT241.

MC74HCT244AN Maximum Ratings

Symbol Parameter Value Unit
vcc DC Supply Voltage (Referenced to GND) 0.5 to +7.0 V
VIN DC Input Voltage (Referenced to GND) 0.5 to VCC + 0.5 V
VOUT DC Output Voltage (Referenced to GND) 0.5 to VCC + 0.5 V
LIN DC Input Current, per Pin ±20 mA
IOUT DC Onput Current, per Pin ±35 mA
ICC DC Supply Current Per Supply Pin ±75 mA
PD Power dissipation in still air piastic DIP
SOIC package
750
500		 mW
TSTG Storage Temperature 65 to +150 °C
TL Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP or SOIC Package)		 260 °C
*Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
†Derating - Plastic DIP: 10 mW/C from 65 to 125C
SOIC Package: 7 mW/C from 65 to 125C
For high frequency or heavy load considerations, see Chapter 2 of the Motorola HighSpeed CMOS Data Book (DL129/D).

MC74HCT244AN Features

• Output Drive Capability: 15 LSTTL Loads
• TTL NMOSCompatible Input Levels
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 4.5 to 5.5 V
• Low Input Current: 1 mA
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 112 FETs or 28 Equivalent Gat

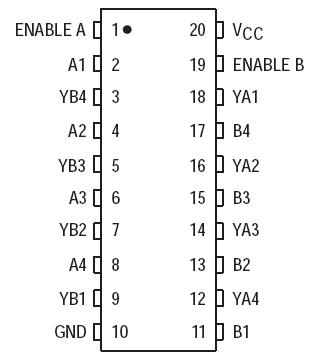

MC74HCT244AN Connection Diagram

MC74HCT244AN Connection Diagram
