Part Number: MC74HCT245AN



MFG: ON

Package Cooled: 20 LEAD PDIP

D/C: 07+

Description: The MC74HCT245A is identical in pinout to the LS245. This device may be used as a level converter for ...


Urgent Purchase

MC74HCT245AN General Description


The MC74HCT245A is identical in pinout to the LS245. This device may be used as a level converter for interfacing TTL or NMOS outputs to High Speed CMOS inputs.

The MC74HCT245A is a 3state noninverting transceiver that is used for 2way asynchronous communication between data buses. The device has an activelow Output Enable pin, which is used to place the I/O ports into highimpedance states. The Direction control determines whether data flows from A to B or from B to A.

MC74HCT245AN Maximum Ratings

Symbol Parameter Value Unit
vcc DC Supply Voltage (Referenced to GND) 0.5 to +7.0 V
VIN DC Input Voltage (Referenced to GND) 0.5 to VCC + 0.5 V
VOUT DC Output Voltage (Referenced to GND) 0.5 to VCC + 0.5 V
LIN DC Input Current, per Pin ±20 mA
IOUT DC Onput Current, per Pin ±35 mA
ICC DC Supply Current Per Supply Pin ±75 mA
PD Power dissipation in still air piastic DIP
SOIC package
750
500		 mW
TSTG Storage Temperature 65 to +150 °C
TL Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP or SOIC Package)		 260 °C
*Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
†Derating - Plastic DIP: 10 mW/C from 65 to 125C
SOIC Package: 7 mW/C from 65 to 125C
For high frequency or heavy load considerations, see Chapter 2 of the Motorola HighSpeed CMOS Data Book (DL129/D).

MC74HCT245AN Features

• Output Drive Capability: 15 LSTTL Loads
• TTL/NMOS Compatible Input Levels
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 4.5 to 5.5 V
• Low Input Current: 1.0 mA
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 304 FETs or 76 Equivalent Gates

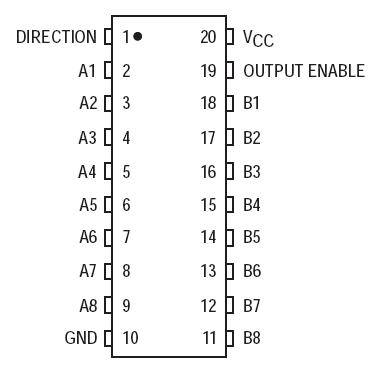

MC74HCT245AN Connection Diagram

MC74HCT245AN Connection Diagram

MC74HCT245AN datasheet
