MC74HCT273AN

Number of Circuits : 1
Maximum Operating Temperature : + 125 C
Supply Voltage - Max : 5.5 V
Logic Family : HCT
Logic Type : CMOS
Polarity : Non-Inverting
Input Type : Single-Ended
Output Type : Single-Ended
High Level Output Current : - 4 mA
Low Level Output Current : 4 mA
Mounting Style : Through Hole
Package / Case : PDIP-20
Packaging : Tube
Propagation Delay Time : 25 ns


Features:

• Output Drive Capability: 10 LSTTL Loads
• TTL/NMOS Compatible Input Levels
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 4.5 to 5.5 V
• Low Input Current: 1.0 mA
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 284 FETs or 71 Equivalent Gates

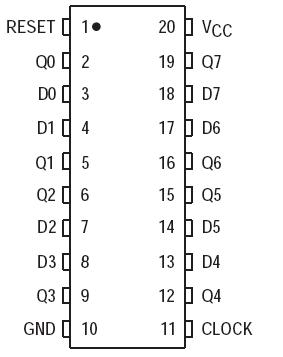

Pinout




Specifications

Symbol	Parameter	Value	Unit
vcc	DC Supply Voltage (Referenced to GND)	0.5 to +7.0	V
VIN	DC Input Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
VOUT	DC Output Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
LIN	DC Input Current, per Pin	±20	mA
IOUT	DC Onput Current, per Pin	±35	mA
ICC	DC Supply Current Per Supply Pin	±75	mA
PD	Power dissipation in still air piastic DIP SOIC package	750 500	mW
TSTG	Storage Temperature	65 to +150	°C
TL	Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package)	260	°C

*Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
†Derating - Plastic DIP: 10 mW/
C from 65
to 125
C
SOIC Package: 7 mW/
C from 65
to 125
C
For high frequency or heavy load considerations, see Chapter 2 of the Motorola HighSpeed CMOS Data Book (DL129/D).


Description

The MC74HCT273A may be used as a level converter for interfacing TTL or NMOS outputs to HighSpeed CMOS inputs.

The HCT273A is identical in pinout to the LS273.

MC74HCT273AN consists of eight D flipflops with common Clock and Reset inputs. Each flipflop is loaded with a lowtohigh transition of the Clock input. Reset is asynchronous and active low.
