MC74HCT573A
-
Suppliers
DataSheet
General Description
MC74HCT573A Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
| VCC | DC Supply Voltage(Referenced to GND) |
0.5 to +7.0 |
V |
| Vin | DC Input Voltage(Referenced to GND) |
0.5 to VCC + 0.5 |
V |
| Vout | DC Output Voltage(Referenced to GND) |
0.5 to VCC + 0.5 |
V |
| Iin | DC Input Current,per Pin |
±20
|
mA
|
| Iout | DC Output Current,per Pin |
±25 |
mA |
| ICC | DC Supply Current,VCC and GND Pins |
±50 |
mA |
| PD | Power Dissipation in Still Air,Plastic DIP SOIC Package TSSOP Package |
750 500 450 |
mW |
| Tstg | Storage Temperature |
65 to +150 |
°C |
| TL | Lead Temperature,1mm from Case for 10 Seconds (Plastic DIP,TSSOP or SOIC Package) |
260 |
°C |
MC74HCT573A Features
• Output Drive Capability: 15 LSTTL Loads
• TTL/NMOSCompatible Input Levels
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 4.5 to 5.5 V
• Low Input Current: 10 A
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 234 FETs or 58.5 Equivalent Gates
- Improved Propagation Delays
- 50% Lower Quiescent Power
• TTL/NMOSCompatible Input Levels
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 4.5 to 5.5 V
• Low Input Current: 10 A
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 234 FETs or 58.5 Equivalent Gates
- Improved Propagation Delays
- 50% Lower Quiescent Power

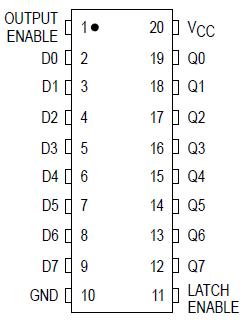

MC74HCT573A Connection Diagram
