Part Number: MC74LCX02









Description: The MC74LCX02 is a high performance, quad 2input NOR gate operating from a 2.7 to 3.6V supply. High im...


Urgent Purchase

MC74LCX02 General Description


The MC74LCX02 is a high performance, quad 2input NOR gate operating from a 2.7 to 3.6V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5V allows MC74LCX02 inputs to be safely driven from 5V devices.

Current drive capability is 24mA at the outputs

MC74LCX02 Maximum Ratings

Symbol Parameter Value Condition Unit
VCC DC Supply Voltage (Referenced to GND) 0.5 to +7.0   V
Vi DC Input Voltage (Referenced to GND) 0.5 3 VI 3 +7.0   V
Vo DC Output Voltage (Referenced to GND) 0.5 3 VO 3 VCC + 0.5 Note 1. V
Iik DC Input Current, per Pin -50 VI < GND mA
Iok DC Output Sink/Source Current, per Pin -50 VO < GND mA
+50 VO > VCC
lo DC Output Source/Sink Current ±50
ICC DC VCC or GND Current per Output Pin ±100   mA
IGND DC Ground Current Per Ground Pin ±100
Tstg Storage Temperature 65 to +150   °C
* Absolute maximum continuous ratings are those values beyond which damage to the device may occur. Exposure to these conditions or
conditions beyond those indicated may adversely affect device reliability. Functional operation under absolutemaximumrated conditions is
not implied.
1. Output in HIGH or LOW State. IO absolute maximum rating must be observed.

MC74LCX02 Features

• Designed for 2.7 to 3.6V VCC Operation
• 5V Tolerant Inputs - Interface Capability With 5V TTL Logic
• LVTTL Compatible
• LVCMOS Compatible
• 24mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current (10mA) Substantially Reduces System
  Power Requirements
• Latchup Performance Exceeds 500mA
• ESD Performance: Human Body Model >2000V; Machine Model >200V

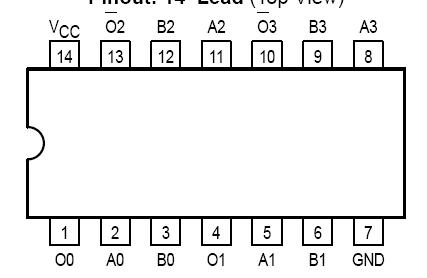

MC74LCX02 Connection Diagram

MC74LCX02 Connection Diagram

MC74LCX02 datasheet

MC74LCX02
PDF/DataSheet Download
